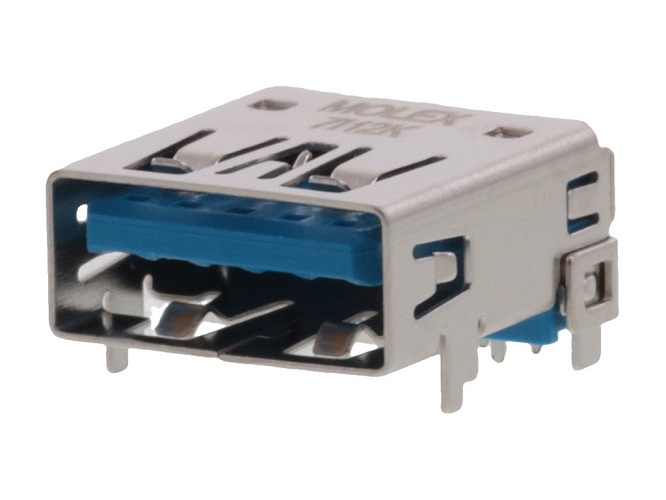

Molex 48393 Series, , 483930003 Series Number Right Angle Through Hole, Version 3.0 Type A USB Connector, Receptacle

Enrgtech Part No: ET13843036
|
Manufacturer Part No:
48393-0003
|
Manufacturer: Molex

48393-0003 Molex 48393 Series, , 483930003 Series Number Right Angle Through Hole, Version 3.0 Type A USB Connector, Receptacle

Product Information

Current Rating:

1.8A

USB Version:

3.0

Mounting Type:

Through Hole

Voltage Rating:

30.0 V

Gender:

Female

USB Type:

Number of Ports:

Minimum Operating Temperature:

-20.0°C

Termination Method:

Solder

Contact Material:

Copper Alloy

Maximum Operating Temperature:

+85°C

Body Orientation:

Right Angle

Checking for live stock

The Molex 48393-0003 is a high-performance USB 3.0 Type A connector designed for robust PCB integration. Featuring a right-angle body orientation and through-hole mounting, this female connector supports SuperSpeed data transfer rates and carries a current rating of 1.8A. Its durable copper alloy construction and solder termination method ensure a stable, long-lasting connection, making it an ideal choice for modern electronic hardware requiring reliable high-speed connectivity in compact spaces.

Why Should You Buy the Product?

Choosing this Molex 48393-0003 USB connector guarantees industry-standard reliability and high-speed data efficiency for your electronic assemblies. Its right-angle design optimises PCB space while providing a secure mechanical fit.

Supports USB 3.0 standards for rapid data transmission.
Durable through-hole mounting offers superior physical stability on circuit boards.

Feature Highlights

Right-angle body orientation for space-saving PCB layouts.
1.8A current rating with a 30V voltage capacity.
Rugged copper alloy contact material for excellent conductivity.
Wide operating temperature range.

Application Areas

Computer peripherals and high-speed data storage devices.
Consumer electronics and industrial control systems.
PCB manufacturing and custom electronic hardware development.

Datasheet(Technical Reference)

Product Specification Sheet - 48393-0003(Technical Reference)

USB 3.0 Type A Through Hole Right Angle PCB Receptacle Contact Height 4.00 mm - Drawing(Technical Reference)

Molex USB 3.0 Connector Brochure(Technical Reference)
