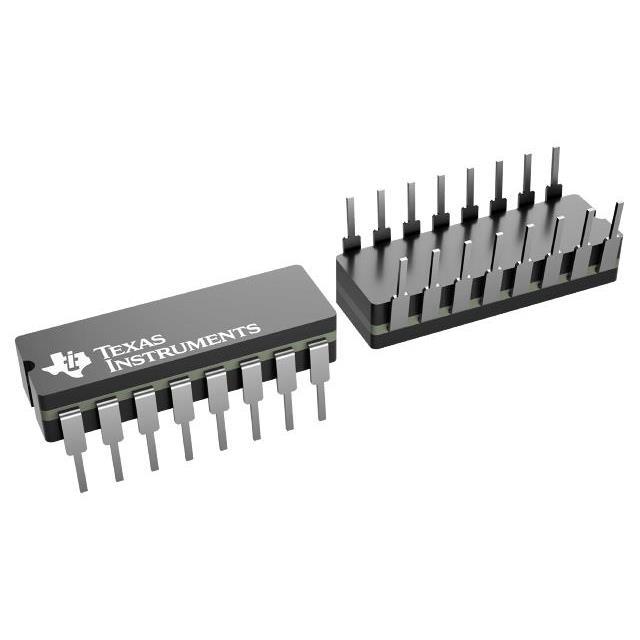

Texas Instruments CD54HC4316F3A

CD54HC4316F3A Texas Instruments
CD54HC4316F3A Texas Instruments
Texas Instruments

Product Information

RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C (TA)
Channel-to-Channel Matching (ΔRon):
5Ohm
Package / Case:
16-CDIP (0.300", 7.62mm)
Switch Time (Ton, Toff) (Max):
37ns, 37ns
Current - Leakage (IS(off)) (Max):
100nA
Voltage - Supply, Dual (V±):
-
-3db Bandwidth:
200MHz
edacadModel:
CD54HC4316F3A Models
Multiplexer/Demultiplexer Circuit:
1:1
edacadModelUrl:
/en/models/18180867
Manufacturer:
Texas Instruments
Channel Capacitance (CS(off), CD(off)):
5pF, 5pF
Moisture Sensitivity Level (MSL):
Not Applicable
Voltage - Supply, Single (V+):
2V ~ 6V
Switch Circuit:
SPST - NO
Number of Circuits:
4
Mounting Type:
Through Hole
Series:
54HC
Crosstalk:
-
On-State Resistance (Max):
170Ohm
Supplier Device Package:
16-CDIP
Charge Injection:
-
Packaging:
Tube
Checking for live stock

This is manufactured by Texas Instruments. The manufacturer part number is CD54HC4316F3A. The product is rohs3 compliant. The product has -55°c ~ 125°c (ta) operating temperature range. Features 5ohm of channel-to-channel matching. Moreover, the product comes in 16-cdip (0.300", 7.62mm). Has a 37ns, 37ns maximum switch time. The maximum current leakage of the product included 100na. A 200mhz of bandwidth. Ratio of multiplexer/demultiplexer circuit 1:1. The texas instruments's product offers user-desired applications. Features 5pf, 5pf channel capacitance. Its typical moisture sensitivity level is not applicable. Single voltage supply of 2v ~ 6v. Features switch circuit of spst - no. It integrates 4 circuits. The product is available in through hole configuration. The product 54hc, is a highly preferred choice for users. It has a maximum on-state resistance of 170ohm. 16-cdip is the supplier device package value. In addition, tube is the available packaging type of the product.

pdf icon
CD54(74)HC4316, CD74HCT4316(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. We ship CD54HC4316F3A Internationally to many countries around the world.
Yes. You can also search CD54HC4316F3A on website for other similar products.
We accept all major payment methods for all products including ET24623933. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24623933 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Texas Instruments" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24623933.
You can order Texas Instruments brand products with CD54HC4316F3A directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Unclassified category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Texas Instruments CD54HC4316F3A. You can also check on our website or by contacting our customer support team for further order details on Texas Instruments CD54HC4316F3A.
