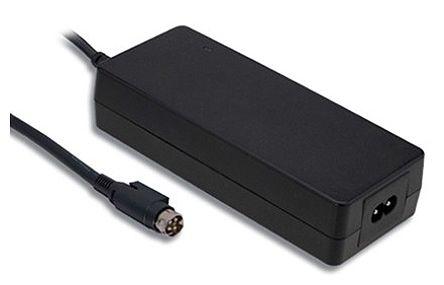

Mean Well 20V dc Power Supply
Product Information
Maximum Temperature:
+70°C
Minimum Temperature:
-30°C
Regulator Type:
Switched Mode Power Supply
Application:
Breath Machine, Medical Computer Monitors, Mobile Clinical Workstation, Oral Irrigator, Portable Hemodialysis Machine
MTBF:
239.1kh
Protection Features:
Over Temperature Protection, Over Voltage Protection, Overload Protection, Short Circuit Protection
Output Current Range:
0 → 8A
Maximum Input Current:
1 A @ 230 V ac, 1.85 A @ 115 V ac
Holdup Time:
20ms
Standards Met:
ANSI/AAMI ES60601-1/ES60601-1-11, AU/NZ MEPS, CAN ICES-3(B)/NMB-3(B), CB, CE Certified, CoC Version 5, CUL Listed, CULus Recognized, EISA 2007/DoE, EN 55011(CISPR11) class B, EN 55024, EN 60601-1-2, EN 61000-3-2,3, EN 61000-4-2,3,4,5,6,8,11, EN 61204-3, EU ErP, FC, FCC Part 15 class B, IEC 320-C8, MIL-HDBK-217F, NRCan, PFC, TUV EN 60601-1, TUV EN 60601-1-11, TUV Rheinland Certified, VI
Input Connector:
IEC320-C8
Input Frequency Range:
47 → 63Hz
Energy Efficiency Level:
VI
Overall Length:
175mm
Overall Depth:
35mm
Number of Outputs:
1
Operating Temperature Range:
-30 → +70 °C
Rated Output Power:
160W
Ripple And Noise:
150mV Pk-Pk
Output Voltage Rating:
20 V dc
Special Features:
LED Indicator For Power On, No Load Power Consumption, Universal AC Input/Full Range, 2 Pole AC Inlet
Medical Approved:
Yes
Power Signal Conversion Type:
AC/DC-DC
Overall Dimensions:
175 x 72 x 35mm
Weight:
660g
Mounting Type:
Desktop
Line Regulation Range:
-1 → +1%
Series:
GSM160B
Overall Width:
72mm
Cable Length:
1200mm
Output Connection Type:
DC Plug
Load Regulation Range:
-4 → +4%
Input Voltage Range:
80 → 264 V ac, 113 → 370 V dc
Checking for live stock
FAQs
Yes. You can also search GSM160B20-R7B on website for other similar products.
We accept all major payment methods for all products including ET16938113. Please check your shopping cart at the time of order.
You can order Mean Well brand products with GSM160B20-R7B directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Unclassified category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Mean Well 20V dc Power Supply. You can also check on our website or by contacting our customer support team for further order details on Mean Well 20V dc Power Supply.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16938113 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Mean Well" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16938113.
Yes. We ship GSM160B20-R7B Internationally to many countries around the world.
This is 20V dc Power Supply manufactured by Mean Well. The manufacturer part number is GSM160B20-R7B. The product has +70°c maximum temperature. While its minimum temperature is -30°c. The regulator is a type of switched mode power supply regulator. Applications Information involves breath machine, medical computer monitors, mobile clinical workstation, oral irrigator, portable hemodialysis machine. The MTBF values include 239.1kh. It provides robust protection features, such as over temperature protection, over voltage protection, overload protection, short circuit protection. Moreover, its output current range is 0 → 8a . While its maximum input current includes 1 a @ 230 v ac, 1.85 a @ 115 v ac. Additionally, its holdup time is about 20ms . The product complies with all safety standards, such as ansi/aami es60601-1/es60601-1-11, au/nz meps, can ices-3(b)/nmb-3(b), cb, ce certified, coc version 5, cul listed, culus recognized, eisa 2007/doe, en 55011(cispr11) class b, en 55024, en 60601-1-2, en 61000-3-2,3, en 61000-4-2,3,4,5,6,8,11, en 61204-3, eu erp, fc, fcc part 15 class b, iec 320-c8, mil-hdbk-217f, nrcan, pfc, tuv en 60601-1, tuv en 60601-1-11, tuv rheinland certified, vi. Input connector of iec320-c8. It has 47 → 63hz input frequency range . Furthermore, its energy efficiency level is vi . It has an overall length of 175mm. Similarly, the product has 35mm of overall depth. Additionally, the product is supplied with 1 outputs. The product has -30 → +70 °c of operating temperature range. It has about 160w rated output power . Carries 150mv pk-pk ripple and noise. It has a typical 20 v dc output voltage rating . The product also provides special features, such as led indicator for power on, no load power consumption, universal ac input/full range, 2 pole ac inlet. Medical Approval - yes. In addition, it has ac/dc-dc type power signal conversion . Furthermore, the product has an overall dimensions of 175 x 72 x 35mm. The typical product's weight is 660g. The product is available in desktop configuration. Moreover, the product has about -1 → +1% of line regulation range . The product gsm160b, is a highly preferred choice for users. It has an overall width of 72mm. Furthermore, the cable has a 1200mm of length. It has a standard dc plug type output connection . It has -4 → +4% load regulation range . It has 80 → 264 v ac, 113 → 370 v dc of input voltage range.
