Name: 560023-0448, Molex
Brand: Molex
SKU: ET16778466
Price: 0.025 GBP
Availability: PreOrder

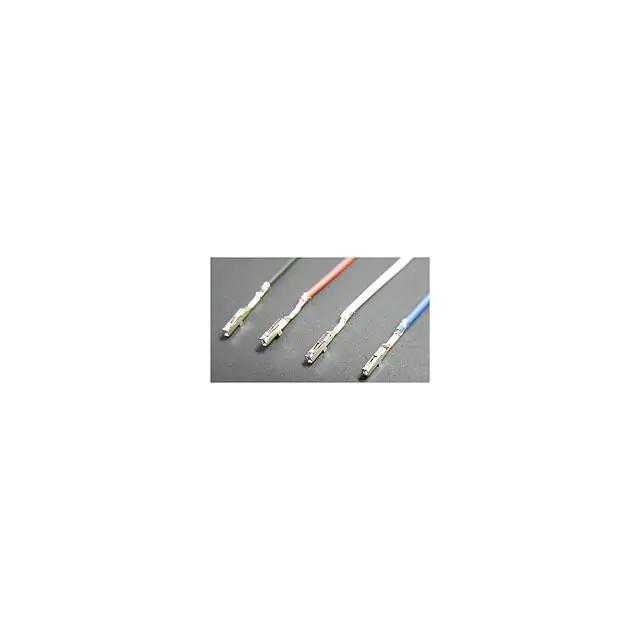

The Molex 560023‑0448 is a precision‑engineered terminal from the Mini50 Series designed for high‑performance automotive connector systems. It guarantees a dependable signal and power transmission in a challenging automotive environment. This terminal offers excellent conductivity and corrosion resistance. Its robust contact design is compatible with Molex’s Mini50 automotive connector housings and helps support systems operating in high-vibration, high-temperature conditions.

Key Features and Benefits of Choosing the Molex Terminal for Automotive Connectors

Accepts 6.0–6.2 mm² (approximately 10 AWG) wire gauge for high‑current applications.
Tin‑plated copper alloy contact provides low resistance and improved durability.
Termination style is crimp‑type, compatible with standard automotive tooling.
Designed to interface with Mini50 Series housings for secure mating and retention.
Car‑ rated performance for temperature ranges and vibration endurance typical in vehicles.
Fits compact connector architecture for space‑constrained automotive modules.

Engineered for Automotive Reliability

This terminal is built to meet stringent automotive qualification standards, including ISO‑TS 16949 and relevant OEM environmental tests. The crimp termination ensures consistent contact force and low electrical impedance under load. With tin‑plating over copper alloy, the contact maintains integrity in corrosive environments and under thermal cycling. The Mini50 system design integrates these terminals with housings that feature latch systems, polarisation features, and optimised signal/power segregation.

Broad Range Application

Engine wiring harnesses requiring robust current transmission and complete weather resistance.
Battery management system (BMS) connections in hybrid and electric vehicles.
ECU signal and power interfaces in off‑road and commercial vehicle equipment.
Sensor and actuator modules requiring heavy-duty terminals inside sealed connectors.
High‑vibration equipment, such as motors, pumps, and transmissions, where connector integrity is critical.

CTX50 female Terminal L-Grip Left Payoff part detail(Technical Reference)

CTX50 female Terminal L-Grip Left Payoff drawing(Technical Reference)

Datasheet(Datasheets)
