Maximum Temperature:
+45°C
Minimum Temperature:
0°C
Width:
31.5mm
MTBF:
200h
Protection Features:
Over Voltage Protection, Overload Protection
Type:
Switched Mode Power Supply
Standards Met:
CE, CULus, EN 55022, EN 55024, EN EC22, IEC 60065, IEC 60335-1, IEC 60950, PSE, SIQ
Maximum Input Current:
160mA
Input Frequency Range:
50 → 60Hz

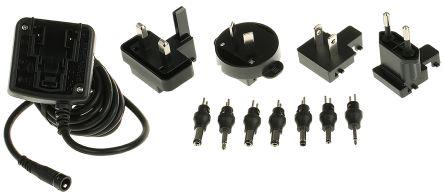

Output Connector:
1.3 x 3.5 x 9.5 mm Female Coaxial Plug, 1.7 x 4 x 11 mm Female Coaxial Plug, 2.1 x 5.5 x 11.5 mm Female Coaxial Plug, 2.1 x 5.5 x 9.5 mm Female Coaxial Plug, 2.5 x 13 mm Jack Plug, 2.5 x 5.5 x 9.5 mm Female Coaxial Plug, 3.5 x 14 mm Jack Plug
Efficiency:
≥80%
Energy Efficiency Level:
VI
Input Voltage:
100 → 240V ac
Number of Outputs:
1
Ripple And Noise:
150mV Pk-Pk
Length:
58mm
Special Features:
Continuously Short Circuit Proof, Efficiency Level VI, Over Voltage Protection, Overload Protection
Power Signal Conversion Type:
AC-DC
Weight:
112g
Output Current:
1.2A
Application:
Industrial
Series:
FW8002
Depth:
41mm
Output Voltage:
5.9 V dc
Power Rating:
7.2W
