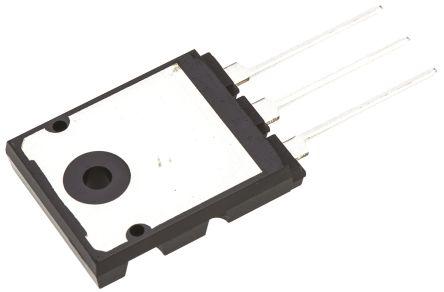

Fairchild FGL60N100BNTD IGBT, 60 A 1000 V, 3-Pin TO-264

FGL60N100BNTD Fairchild IGBT, 60 A 1000 V, 3-Pin TO-264
FGL60N100BNTD
FGL60N100BNTD
ET16753298
ET16753298
Unclassified
Fairchild Semiconductor

Product Information

Dimensions:
20 x 5 x 26mm
Mounting Type:
Through Hole
Maximum Continuous Collector Current:
60 A
Maximum Collector Emitter Voltage:
1000 V
Height:
26mm
Width:
5mm
Length:
20mm
Maximum Gate Emitter Voltage:
±25V
Package Type:
TO-264
Minimum Operating Temperature:
-55 °C
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Fairchild IGBT 60 A 1000 V 3-Pin TO-264 manufactured by Fairchild Semiconductor. The manufacturer part number is FGL60N100BNTD. The given dimensions of the product include 20 x 5 x 26mm. The product is available in through hole configuration. The product has a maximum 60 a continuous collector current . Whereas features a 1000 v of collector emitter voltage (max). In addition, the height is 26mm. Furthermore, the product is 5mm wide. Its accurate length is 20mm. It offers a maximum ±25v gate emitter voltage . The package is a sort of to-264. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 3 pins. The product offers single transistor configuration.
