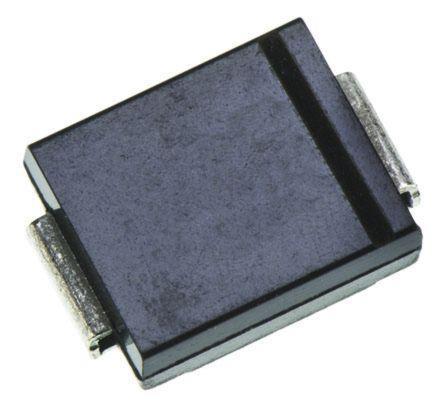

Vishay SS8P2LHM3_A/H SMT Schottky Diode, 20V 8A, 3-Pin TO-277A

SS8P2LHM3_A-H Vishay SS8P2LHM3_A/H SMT Schottky Diode, 20V 8A, 3-Pin TO-277A
SS8P2LHM3_A/H
SS8P2LHM3_A/H
ET16723853
ET16723853
Unclassified
SS8P2LHM3_A-H Vishay SS8P2LHM3_A/H SMT Schottky Diode, 20V 8A, 3-Pin TO-277A
Vishay

Product Information

Dimensions:
6.15 x 4.75 x 1.2mm
Mounting Type:
Surface Mount
Diode Technology:
Schottky
Maximum Continuous Forward Current:
8A
Maximum Operating Temperature:
+150 °C
Peak Non-Repetitive Forward Surge Current:
150A
Maximum Forward Voltage Drop:
570mV
Height:
1.2mm
Peak Reverse Current:
35mA
Width:
4.75mm
Length:
6.15mm
Package Type:
TO-277A
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Diode Type:
Schottky
Diode Configuration:
Single
Pin Count:
3
Peak Reverse Repetitive Voltage:
20V
RoHs Compliant
Checking for live stock

This is SMT Schottky Diode 20V 8A 3-Pin TO-277A manufactured by Vishay. The manufacturer part number is SS8P2LHM3_A/H. The given dimensions of the product include 6.15 x 4.75 x 1.2mm. The product is available in surface mount configuration. The product utilizes schottky diode technology. Furthermore, its maximum continuous forward current constitutes 8a. It has a maximum operating temperature of +150 °c. Moreover, a bespoke product has 150a peak non-repetitive forward surge current. It features 570mv of maximum forward voltage drop. In addition, the height is 1.2mm. It has a typical 35ma peak reverse current . Furthermore, the product is 4.75mm wide. Its accurate length is 6.15mm. The package is a sort of to-277a. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. It is designed with a schottky diode. The diode features a single configuration. It contains 3 pins. While having the peak reverse repetitive 20v.

pdf icon
SS8P2L, SS8P3L, High Current Density Surface Mount Schottky Barrier Rectifiers(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. We ship SS8P2LHM3_A/H Internationally to many countries around the world.
Yes. You can also search SS8P2LHM3_A/H on website for other similar products.
We accept all major payment methods for all products including ET16723853. Please check your shopping cart at the time of order.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16723853 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search"Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16723853.
You can order Vishay brand products with SS8P2LHM3_A/H directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Unclassified category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay SS8P2LHM3_A/H SMT Schottky Diode, 20V 8A, 3-Pin TO-277A. You can also check on our website or by contacting our customer support team for further order details on Vishay SS8P2LHM3_A/H SMT Schottky Diode, 20V 8A, 3-Pin TO-277A.
