Category:
Power MOSFET
Dimensions:
3.3 x 3.3 x 0.75mm
Maximum Continuous Drain Current:
18 A
Transistor Material:
Si
Width:
3.3mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V

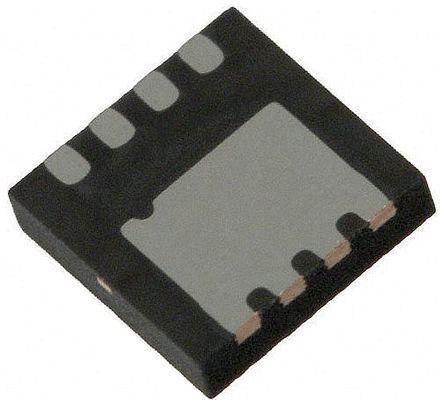

Package Type:
MLP
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
30 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1895 pF@ 15 V
Length:
3.3mm
Pin Count:
8
Typical Turn-Off Delay Time:
26 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
36 W
Series:
PowerTrench, SyncFET
Maximum Gate Source Voltage:
±20 V
Height:
0.75mm
Typical Turn-On Delay Time:
11 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
9 mΩ
