Category:
Power MOSFET
Dimensions:
6.73 x 6.22 x 2.39mm
Maximum Continuous Drain Current:
20 A
Transistor Material:
Si
Width:
6.22mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
60 V
Maximum Gate Threshold Voltage:
3V
Package Type:
TO-252AA
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
38 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1480 pF @ 25 V
Length:
6.73mm
Pin Count:
3
Typical Turn-Off Delay Time:
60 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
110 W
Series:
UltraFET
Maximum Gate Source Voltage:
±16 V
Height:
2.39mm
Typical Turn-On Delay Time:
7.7 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
23 mΩ

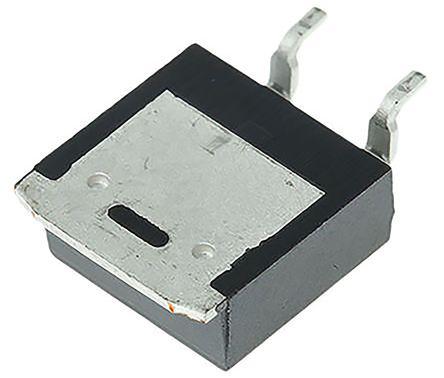

This is Fairchild N-channel MOSFET 20 A 60 V UltraFET 3-Pin TO-252AA manufactured by Fairchild Semiconductor. The manufacturer part number is HUFA76429D3ST_F085. It is of power mosfet category . The given dimensions of the product include 6.73 x 6.22 x 2.39mm. While 20 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 6.22mm wide. The product offers single transistor configuration. It has a maximum of 60 v drain source voltage. The product carries 3v of maximum gate threshold voltage. The package is a sort of to-252aa. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 1v. It has a maximum operating temperature of +175 °c. With a typical gate charge at Vgs includes 38 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 1480 pf @ 25 v . Its accurate length is 6.73mm. It contains 3 pins. Whereas, its typical turn-off delay time is about 60 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 110 w maximum power dissipation. The product ultrafet, is a highly preferred choice for users. It features a maximum gate source voltage of ±16 v. In addition, the height is 2.39mm. In addition, it has a typical 7.7 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 23 mω maximum drain source resistance.
