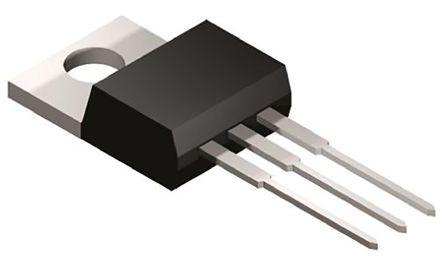

Category:
Power MOSFET
Dimensions:
10.67 x 4.83 x 9.4mm
Maximum Continuous Drain Current:
15 A
Transistor Material:
Si
Width:
4.83mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
75 V
Maximum Gate Threshold Voltage:
4V
Package Type:
TO-220AB
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
92 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
6600 pF@ 25 V
Length:
10.67mm
Pin Count:
3
Typical Turn-Off Delay Time:
40 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
310 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±20 V
Height:
9.4mm
Typical Turn-On Delay Time:
18 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
5 mΩ
FET Feature:
-
HTSUS:
0000.00.0000
Vgs(th) (Max) @ Id:
4V @ 250µA
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
TO-220-3
Gate Charge (Qg) (Max) @ Vgs:
138 nC @ 10 V
Rds On (Max) @ Id, Vgs:
4.7mOhm @ 80A, 10V
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
6V, 10V
Package:
Bulk
Drain to Source Voltage (Vdss):
75 V
Vgs (Max):
±20V
Power Dissipation (Max):
310W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
6600 pF @ 25 V
Mounting Type:
Through Hole
Series:
PowerTrench®
Supplier Device Package:
TO-220-3
Current - Continuous Drain (Id) @ 25°C:
15A (Tc)
Technology:
MOSFET (Metal Oxide)
