Maximum Temperature:
60°C
AC or DC Output Voltage:
Dc
Minimum Temperature:
-10°C
AC or DC Input Voltage:
Ac
Width:
55.5mm
MTBF:
123.1Kh
Maximum Output Voltage:
48V dc
Electrical Phase:
1
Protection Features:
Over Temperature Protection, Over Voltage Protection, Overload Protection, Short Circuit Protection
Type:
Switch Mode
Holdup Time:
12 (115 V ac) ms, 60 (230 V ac) ms
Standards Met:
-3, Compliance to EN 55011, Compliance to EN 61000-3-2, Compliance to EN 61000-4-2, EN 50082-2, EN 55022 (CISPR22) Class B, EN 55024, EN 60950-1 Approved, EN 61000-6-2, ENV 50204, UL 508, 3 ,4, 5, 6, 8, 11
Maximum Input Current:
1.6A
Input Frequency Range:
47 → 63Hz
Efficiency:
81%
Input Voltage:
85 → 264V ac
Number of Outputs:
1
Output Voltage Adjustment Range:
48 → 53V
Line Regulation:
±0.5%
Ripple And Noise:
240mV Pk-Pk
Range:
PS
Minimum Output Voltage:
48V dc
Special Features:
Cooling by Free Air Convection, LED Indicator
Input Electrical Phase:
Single Phase
Power Signal Conversion Type:
AC/DC-DC
Mounting Type:
DIN Rail
Output Current:
1.6 A
Application:
Industrial
Series:
PS-75
Depth:
100mm
Height:
125mm
Weight:
0.6kg
Output Voltage:
48 V dc
Power Rating:
76.8W
Maximum Input Voltage:
264V ac
Minimum Input Voltage:
85V ac

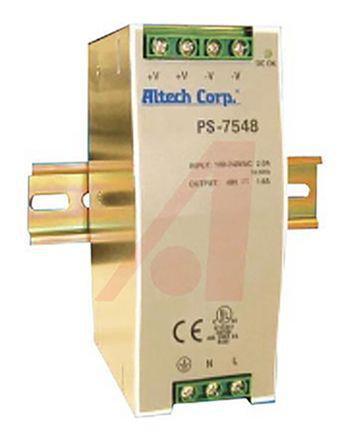

This is PS 76.8W Switch Mode DIN Rail Power Supply 48V dc/ 1.6A manufactured by Altech. The manufacturer part number is PS-7548. The product has 60°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -10°c. It has ac input voltage. Furthermore, the product is 55.5mm wide. The MTBF values include 123.1kh. Its output voltage (maximum) includes 48v dc. Its electrical phase configuration includes 1. It provides robust protection features, such as over temperature protection, over voltage protection, overload protection, short circuit protection. It comes in switch mode configuration. Additionally, its holdup time is about 12 (115 v ac) ms, 60 (230 v ac) ms . The product complies with all safety standards, such as -3, compliance to en 55011, compliance to en 61000-3-2, compliance to en 61000-4-2, en 50082-2, en 55022 (cispr22) class b, en 55024, en 60950-1 approved, en 61000-6-2, env 50204, ul 508, 3 ,4, 5, 6, 8, 11. While its maximum input current includes 1.6a. It has 47 → 63hz input frequency range . It is a highly efficient product with an 81% of high efficiency. Its input voltage is 85 → 264v ac. Additionally, the product is supplied with 1 outputs. It has 48 → 53v of output voltage adjustment range. Has a line regulation of ±0.5%. Carries 240mv pk-pk ripple and noise. It features ps range. The product features 48v dc minimum output voltage. The product also provides special features, such as cooling by free air convection, led indicator. It has a single phase input electrical phase . In addition, it has ac/dc-dc type power signal conversion . The product is available in din rail configuration. It carries 1.6 a output current. Applications Information involves industrial. The product ps-75, is a highly preferred choice for users. The product comes in 100mm depth. In addition, the height is 125mm. The typical product's weight is 0.6kg. Features a 48 v dc output voltage. Feature 76.8w of power rating. 264v ac is the maximum voltage of the bespoke product. The product has 85v ac of minimum input voltage.
