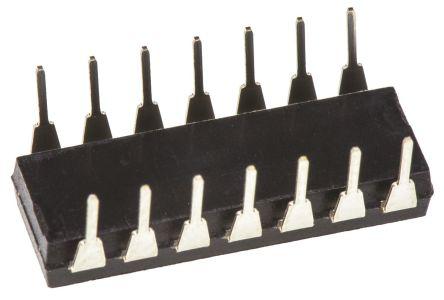

NXP HEF4070BP,652, Quad 2-Input XOR Logic Gate, 3 → 15 V, 14-Pin PDIP
Product Information
Dimensions:
19.5 x 6.48 x 3.2mm
Logic Family:
4000
Width:
6.48mm
Maximum Low Level Output Current:
3.6mA
Maximum High Level Output Current:
-3.6mA
Maximum Propagation Delay Time @ Maximum CL:
55 ns @ 15 V, 75 ns @ 10 V, 175 ns @ 5 V
Minimum Operating Supply Voltage:
3 V
Package Type:
PDIP
Maximum Operating Temperature:
+85 °C
Number of Inputs per Gate:
2
Length:
19.5mm
Pin Count:
14
Maximum Operating Supply Voltage:
15 V
Mounting Type:
Through Hole
Logic Function:
XOR
Height:
3.2mm
Minimum Operating Temperature:
-40 °C
Schmitt Trigger Input:
No
Number of Elements:
4
Propagation Delay Test Condition:
50pF
Checking for live stock
FAQs
Yes. You can also search HEF4070BP,652 on website for other similar products.
We accept all major payment methods for all products including ET14054969. Please check your shopping cart at the time of order.
You can order NXP brand products with HEF4070BP,652 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Unclassified category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP HEF4070BP,652, Quad 2-Input XOR Logic Gate, 3 → 15 V, 14-Pin PDIP. You can also check on our website or by contacting our customer support team for further order details on NXP HEF4070BP,652, Quad 2-Input XOR Logic Gate, 3 → 15 V, 14-Pin PDIP.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14054969 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "NXP" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14054969.
Yes. We ship HEF4070BP,652 Internationally to many countries around the world.
This is Quad 2-Input XOR Logic Gate 3 → 15 V 14-Pin PDIP manufactured by NXP. The manufacturer part number is HEF4070BP,652. The given dimensions of the product include 19.5 x 6.48 x 3.2mm. The logic family is 4000. Furthermore, the product is 6.48mm wide. On the other hand, it is featured with 3.6ma of max. low level output current. While a -3.6ma of maximum high level output current. It provides up to 55 ns @ 15 v, 75 ns @ 10 v, 175 ns @ 5 v maximum propagation delay time. While its minimum operating supply voltage is 3 v. The package is a sort of pdip. It has a maximum operating temperature of +85 °c. It contains 2 inputs per gate . Its accurate length is 19.5mm. It contains 14 pins. It has 15 v maximum operating supply voltage. The product is available in through hole configuration. The primary function of logic includes xor. In addition, the height is 3.2mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - no. It carries 4 elements. Features 50pf of propagation delay test condition.
