Category:
Power MOSFET
Dimensions:
10.16 x 4.7 x 9.19mm
Maximum Continuous Drain Current:
6 A
Transistor Material:
Si
Width:
4.7mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
900 V

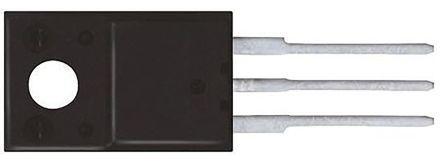

Package Type:
TO-220F
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
3V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
30 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1360 pF@ 25 V
Length:
10.16mm
Pin Count:
3
Typical Turn-Off Delay Time:
55 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
56 W
Series:
QFET
Maximum Gate Source Voltage:
±30 V
Height:
9.19mm
Typical Turn-On Delay Time:
35 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
2.3 Ω
