Dimensions:
10.36 x 4.9 x 16.07mm
Maximum Continuous Drain Current:
40 A
Transistor Material:
Si
Width:
4.9mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
100 V

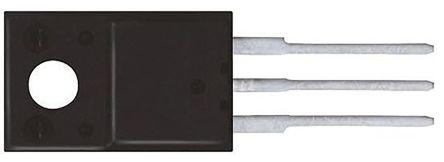

Package Type:
TO-220F
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
9.7 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
2025 pF@ 50 V
Length:
10.36mm
Pin Count:
3
Typical Turn-Off Delay Time:
29 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
33.3 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±20 V
Height:
16.07mm
Typical Turn-On Delay Time:
18 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
8.5 mΩ
