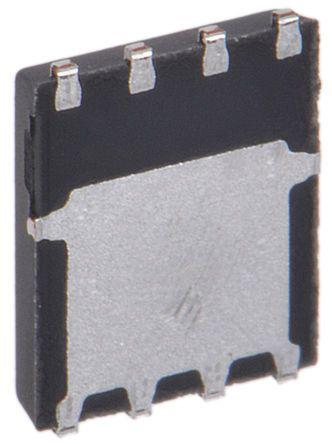

Category:
Power MOSFET
Dimensions:
5 x 6 x 1.05mm
Maximum Continuous Drain Current:
83 A
Transistor Material:
Si
Width:
6mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
80 V
Package Type:
Power 56
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
39 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
2255 pF@ 50 V
Length:
5mm
Pin Count:
8
Typical Turn-Off Delay Time:
27 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
104 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±20 V
Height:
1.05mm
Typical Turn-On Delay Time:
15 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
14 mΩ
