Category:
Power MOSFET
Dimensions:
5.1 x 3.4 x 0.75mm
Maximum Continuous Drain Current:
21 A
Transistor Material:
Si
Width:
3.4mm
Transistor Configuration:
Common Source
Maximum Drain Source Voltage:
100 V
Package Type:
PQFN
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
11 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
734 pF @ 50 V
Length:
5.1mm
Pin Count:
8
Typical Turn-Off Delay Time:
14 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
23 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±20 V
Height:
0.75mm
Typical Turn-On Delay Time:
8.4 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
38 mΩ

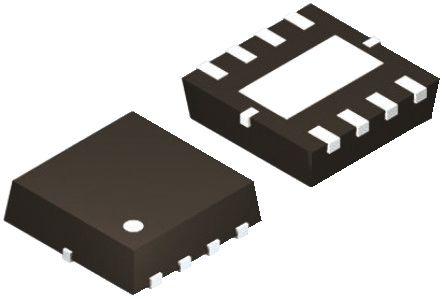

This is Fairchild Dual N-channel MOSFET 21 A 100 V PowerTrench 8-Pin PQFN manufactured by Fairchild Semiconductor. The manufacturer part number is FDMD84100. It is of power mosfet category . The given dimensions of the product include 5.1 x 3.4 x 0.75mm. While 21 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.4mm wide. The product offers common source transistor configuration. It has a maximum of 100 v drain source voltage. The package is a sort of pqfn. It consists of 2 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 11 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 734 pf @ 50 v . Its accurate length is 5.1mm. It contains 8 pins. Whereas, its typical turn-off delay time is about 14 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 23 w maximum power dissipation. The product powertrench, is a highly preferred choice for users. It features a maximum gate source voltage of ±20 v. In addition, the height is 0.75mm. In addition, it has a typical 8.4 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 38 mω maximum drain source resistance.
