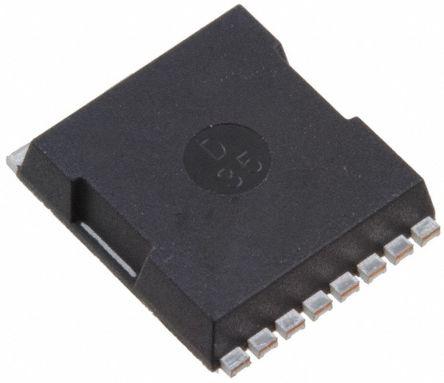

Category:
Power MOSFET
Dimensions:
10.48 x 9.9 x 2.4mm
Maximum Continuous Drain Current:
240 A
Transistor Material:
Si
Width:
9.9mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
40 V
Maximum Gate Threshold Voltage:
4V
Package Type:
PSOF
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
144 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
12000 pF @ 25 V
Length:
10.48mm
Pin Count:
8
Typical Turn-Off Delay Time:
83 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
357 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±20 V
Height:
2.4mm
Typical Turn-On Delay Time:
42 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
1.5 mΩ
