Maximum Temperature:
+70°C
AC or DC Output Voltage:
Dc
Minimum Temperature:
-20°C
AC or DC Input Voltage:
Ac
Width:
23mm
MTBF:
131.3kh
Maximum Output Voltage:
15V dc
Electrical Phase:
1
Protection Features:
Brown Out, Over Voltage Protection, Overload Protection, Short Circuit Protection
Type:
Switch Mode
Holdup Time:
>32 ms @ 230 V ac
Standards Met:
CE, CULus, E 361935, EN 55022:2006+A1:2007 Class B, EN 55024:1998+A1:2001+A2:2003, EN 61000-3-2:2006 Class A, EN 61000-3-3:2008, EN 61204-3:2000, NEC Class 2, RoHS, TUV, TUV EN 60950-1:2006+A11, UL 1310, UL 508, Ulus
Maximum Input Current:
0.45 A @ 115 V ac
Input Frequency Range:
47 → 63Hz
Efficiency:
85%
Input Voltage:
88 → 264V ac
Number of Outputs:
1
Output Voltage Adjustment Range:
13.5 → 16.5V
Line Regulation:
±1%
Ripple And Noise:
100mV Pk-Pk
Range:
PSC
Minimum Output Voltage:
15V dc
Special Features:
High Efficiency, High Reliability, Long Life, True DC OK Signal Output, Universal AC Input, 3-Year Product Warranty
Input Electrical Phase:
Single Phase
Power Signal Conversion Type:
AC-DC
Mounting Type:
DIN Rail
Output Current:
0 → 1.4A
Application:
Industrial
Series:
PSC-20
Depth:
99mm
Height:
90mm
Output Voltage:
15 V dc
Power Rating:
21W
Maximum Input Voltage:
264V ac
Minimum Input Voltage:
88V ac

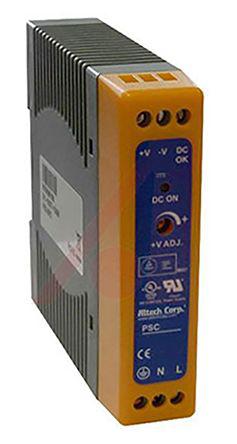

This is PSC 21W Switch Mode DIN Rail Power Supply 15V dc/ 0 → 1.4A manufactured by Altech. The manufacturer part number is PSC-2015. The product has +70°c maximum temperature. It has a/an dc output voltage . While its minimum temperature is -20°c. It has ac input voltage. Furthermore, the product is 23mm wide. The MTBF values include 131.3kh. Its output voltage (maximum) includes 15v dc. Its electrical phase configuration includes 1. It provides robust protection features, such as brown out, over voltage protection, overload protection, short circuit protection. It comes in switch mode configuration. Additionally, its holdup time is about >32 ms @ 230 v ac . The product complies with all safety standards, such as ce, culus, e 361935, en 55022:2006+a1:2007 class b, en 55024:1998+a1:2001+a2:2003, en 61000-3-2:2006 class a, en 61000-3-3:2008, en 61204-3:2000, nec class 2, rohs, tuv, tuv en 60950-1:2006+a11, ul 1310, ul 508, ulus. While its maximum input current includes 0.45 a @ 115 v ac. It has 47 → 63hz input frequency range . It is a highly efficient product with an 85% of high efficiency. Its input voltage is 88 → 264v ac. Additionally, the product is supplied with 1 outputs. It has 13.5 → 16.5v of output voltage adjustment range. Has a line regulation of ±1%. Carries 100mv pk-pk ripple and noise. It features psc range. The product features 15v dc minimum output voltage. The product also provides special features, such as high efficiency, high reliability, long life, true dc ok signal output, universal ac input, 3-year product warranty. It has a single phase input electrical phase . In addition, it has ac-dc type power signal conversion . The product is available in din rail configuration. It carries 0 → 1.4a output current. Applications Information involves industrial. The product psc-20, is a highly preferred choice for users. The product comes in 99mm depth. In addition, the height is 90mm. Features a 15 v dc output voltage. Feature 21w of power rating. 264v ac is the maximum voltage of the bespoke product. The product has 88v ac of minimum input voltage.
