Dimensions:
10.414 x 9.652 x 4.826mm
Maximum Continuous Drain Current:
200 A
Transistor Material:
Si
Width:
9.652mm
Automotive Standard:
AEC-Q101
Transistor Configuration:
Single
Maximum Drain Source Voltage:
40 V

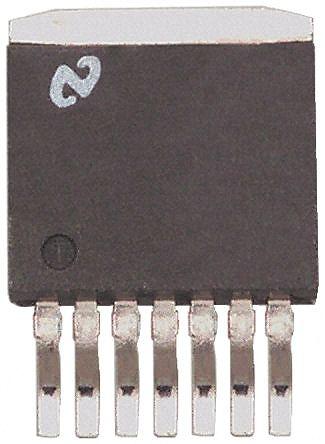

Package Type:
TO-263
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.5V
Maximum Operating Temperature:
+175 °C
Typical Gate Charge @ Vgs:
275 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
16524 pF @ 25 V
Length:
10.41mm
Pin Count:
7
Typical Turn-Off Delay Time:
443 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
375 W
Series:
SQ Rugged
Maximum Gate Source Voltage:
±20 V
Height:
4.826mm
Typical Turn-On Delay Time:
13 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
2.3 mΩ
