Category:
Power MOSFET
Dimensions:
2.92 x 1.4 x 0.94mm
Maximum Continuous Drain Current:
2.7 A
Transistor Material:
Si
Width:
1.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Maximum Gate Threshold Voltage:
3V
Maximum Drain Source Resistance:
46 mΩ

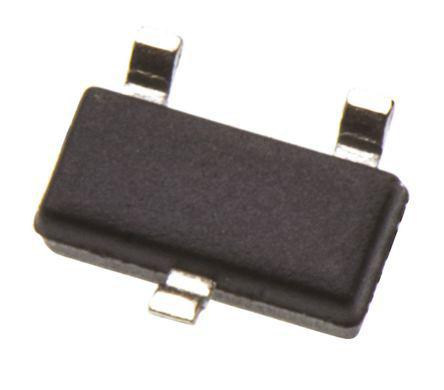

Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
5 nC @ 5 V
Channel Type:
N
Typical Input Capacitance @ Vds:
485 pF @ 15 V
Length:
2.92mm
Pin Count:
3
Forward Transconductance:
11S
Typical Turn-Off Delay Time:
20 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
0.5 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±20 V
Height:
0.94mm
Typical Turn-On Delay Time:
7 ns
Minimum Operating Temperature:
-55 °C
Forward Diode Voltage:
1.2V
