Category:
Power MOSFET
Dimensions:
3.4 x 3.4 x 0.75mm
Maximum Continuous Drain Current:
3.2 A
Transistor Material:
Si
Width:
3.4mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
150 V

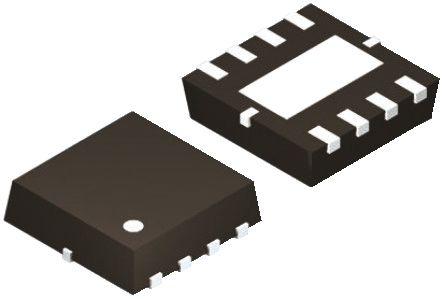

Package Type:
Power 33
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
22 nC @ 10 V
Channel Type:
P
Typical Input Capacitance @ Vds:
1535 pF @ -75 V
Length:
3.4mm
Pin Count:
8
Typical Turn-Off Delay Time:
22 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
62 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±25 V
Height:
0.75mm
Typical Turn-On Delay Time:
12 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
178 mΩ
