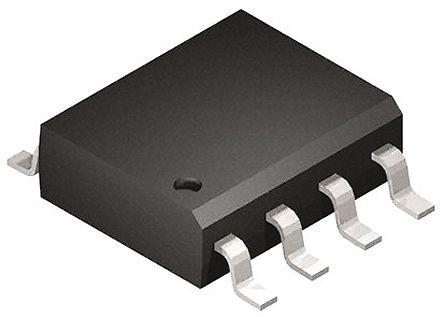

Fairchild Semiconductor FAN7190M_F085 Dual Half Bridge MOSFET Power Driver, -4.5 A, 4.5 A, 10 → 22 V

FAN7190M_F085 Fairchild Semiconductor Dual Half Bridge MOSFET Power Driver, -4.5 A, 4.5 A, 10 → 22 V
Fairchild Semiconductor

Product Information

Number of Outputs:
2
Peak Output Current:
-4.5 A, 4.5 A
Dimensions:
4.9 x 3.9 x 1.575mm
Bridge Type:
Half Bridge
Maximum Operating Temperature:
+125 °C
Minimum Operating Supply Voltage:
10 V
Number of Drivers:
2
Height:
1.575mm
Width:
3.9mm
Length:
4.9mm
Package Type:
SOP
Driver Type:
High and Low Side
Minimum Operating Temperature:
-40 °C
Mounting Type:
Surface Mount
Input Logic Compatibility:
CMOS, TTL
Driver Configuration:
Non-Inverting
Pin Count:
8
Maximum Operating Supply Voltage:
22 V
RoHs Compliant
Checking for live stock

This is Dual Half Bridge MOSFET Power Driver -4.5 A 4.5 A 10 → 22 V manufactured by Fairchild Semiconductor. The manufacturer part number is FAN7190M_F085. Additionally, the product is supplied with 2 outputs. It offers a standard -4.5 a, 4.5 a peak output current . The given dimensions of the product include 4.9 x 3.9 x 1.575mm. It contains a/an half bridge type bridge . It has a maximum operating temperature of +125 °c. While its minimum operating supply voltage is 10 v. Number of Drivers equals 2. In addition, the height is 1.575mm. Furthermore, the product is 3.9mm wide. Its accurate length is 4.9mm. The package is a sort of sop. It has a/an high and low side type driver . Whereas, the minimum operating temperature of the product is -40 °c. The product is available in surface mount configuration. Moreover, it has a cmos, ttl input logic compatibility . Moreover, it has a/an non-inverting driver configuration . It contains 8 pins. It has 22 v maximum operating supply voltage.

pdf icon
FAN7190_F085, High-Current, High & Low-Side, Gate-Drive IC(Technical Reference)
