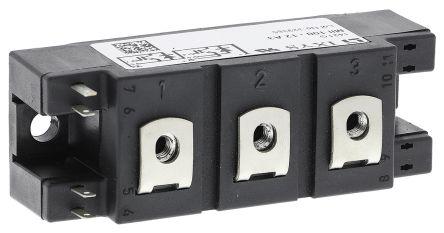

Semikron SKM200GAL12E4, SEMITRANS3 IGBT Module, 314 A max, 1200 V, Panel Mount

SKM200GAL12E4 Semikron , SEMITRANS3 IGBT Module, 314 A max, 1200 V, Panel Mount
SKM200GAL12E4
SKM200GAL12E4
ET13959553
ET13959553
Unclassified
Semikron

Product Information

Configuration:
Single
Dimensions:
106.4 x 61.4 x 30.5mm
Mounting Type:
Panel Mount
Maximum Continuous Collector Current:
314 A
Maximum Collector Emitter Voltage:
1200 V
Height:
30.5mm
Width:
61.4mm
Length:
106.4mm
Maximum Gate Emitter Voltage:
±20V
Package Type:
SEMITRANS3
Minimum Operating Temperature:
-40 °C
Channel Type:
N
Maximum Operating Temperature:
+175 °C
Pin Count:
5
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is SEMITRANS3 IGBT Module 314 A max 1200 V Panel Mount manufactured by Semikron. The manufacturer part number is SKM200GAL12E4. The product is available in single configuration. The given dimensions of the product include 106.4 x 61.4 x 30.5mm. The product is available in panel mount configuration. The product has a maximum 314 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). In addition, the height is 30.5mm. Furthermore, the product is 61.4mm wide. Its accurate length is 106.4mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of semitrans3. Whereas, the minimum operating temperature of the product is -40 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +175 °c. It contains 5 pins. The product offers single transistor configuration.

pdf icon
Semikron Driver Selection Guide(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
IGBT chopper module 200A 1200V(Technical Reference)
