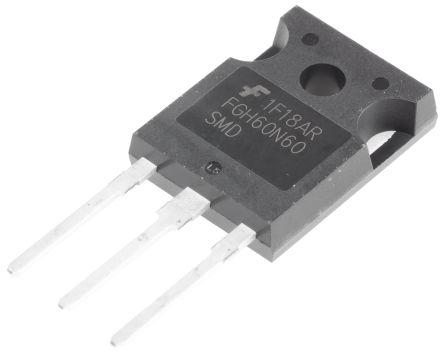

FGH60N60SMD Fairchild IGBT, 120 A 600 V, 3-Pin TO-247AB

FGH60N60SMD Fairchild IGBT, 120 A 600 V, 3-Pin TO-247AB
Fairchild Semiconductor

Product Information

Dimensions:
15.6 x 4.7 x 20.6mm
Mounting Type:
Through Hole
Maximum Power Dissipation:
600 W
Maximum Continuous Collector Current:
120 A
Maximum Collector Emitter Voltage:
600 V
Height:
20.6mm
Width:
4.7mm
Length:
15.6mm
Maximum Gate Emitter Voltage:
±20V
Package Type:
TO-247AB
Minimum Operating Temperature:
-55 °C
Channel Type:
N
Maximum Operating Temperature:
+175 °C
Pin Count:
3
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is Fairchild IGBT 120 A 600 V 3-Pin TO-247AB manufactured by Fairchild Semiconductor. The manufacturer part number is FGH60N60SMD. The given dimensions of the product include 15.6 x 4.7 x 20.6mm. The product is available in through hole configuration. Provides up to 600 w maximum power dissipation. The product has a maximum 120 a continuous collector current . Whereas features a 600 v of collector emitter voltage (max). In addition, the height is 20.6mm. Furthermore, the product is 4.7mm wide. Its accurate length is 15.6mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of to-247ab. Whereas, the minimum operating temperature of the product is -55 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +175 °c. It contains 3 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search FGH60N60SMD on website for other similar products.
We accept all major payment methods for all products including ET13946444. Please check your shopping cart at the time of order.
You can order Fairchild Semiconductor brand products with FGH60N60SMD directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Unclassified category are shipped in lowest possible time.
You will get a confirmation email regarding your order of FGH60N60SMD Fairchild IGBT, 120 A 600 V, 3-Pin TO-247AB. You can also check on our website or by contacting our customer support team for further order details on FGH60N60SMD Fairchild IGBT, 120 A 600 V, 3-Pin TO-247AB.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13946444 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Fairchild Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13946444.
Yes. We ship FGH60N60SMD Internationally to many countries around the world.
