Category:
Power MOSFET
Dimensions:
6.73 x 2.38 x 6.22mm
Maximum Continuous Drain Current:
4.8 A
Transistor Material:
Si
Width:
2.38mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
200 V
Package Type:
IPAK
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
14 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
260 pF@ 25 V
Length:
6.73mm
Pin Count:
3
Typical Turn-Off Delay Time:
19 ns
Mounting Type:
Through Hole
Channel Mode:
Enhancement
Maximum Power Dissipation:
2.5 W
Maximum Gate Source Voltage:
±20 V
Height:
6.22mm
Typical Turn-On Delay Time:
7.2 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
800 mΩ

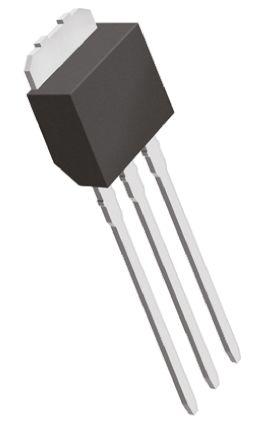

This is N-channel MOSFET 4.8 A 200 V 3-Pin IPAK manufactured by Vishay. The manufacturer part number is IRFU220PBF. It is of power mosfet category . The given dimensions of the product include 6.73 x 2.38 x 6.22mm. While 4.8 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 2.38mm wide. The product offers single transistor configuration. It has a maximum of 200 v drain source voltage. The package is a sort of ipak. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 14 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 260 pf@ 25 v . Its accurate length is 6.73mm. It contains 3 pins. Whereas, its typical turn-off delay time is about 19 ns . The product is available in through hole configuration. The product carries enhancement channel mode. Provides up to 2.5 w maximum power dissipation. It features a maximum gate source voltage of ±20 v. In addition, the height is 6.22mm. In addition, it has a typical 7.2 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 800 mω maximum drain source resistance.
