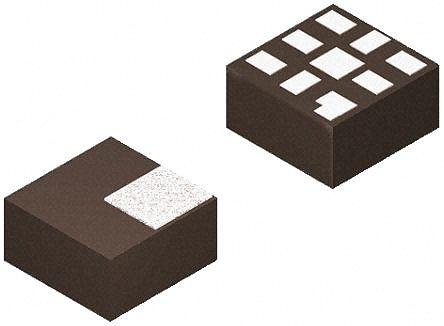

Fairchild FDMC86261P P-channel MOSFET, 2.7 A, 150 V PowerTrench, 8-Pin Power 33

FDMC86261P Fairchild  P-channel MOSFET, 2.7 A, 150 V PowerTrench, 8-Pin Power 33
Fairchild Semiconductor

Product Information

Category:
Power MOSFET
Dimensions:
3.3 x 3.3 x 0.725mm
Maximum Continuous Drain Current:
2.7 A
Transistor Material:
Si
Width:
3.3mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
150 V
Package Type:
Power 33
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
17 nC @ 10 V
Channel Type:
P
Typical Input Capacitance @ Vds:
1021 pF @ -75 V
Length:
3.3mm
Pin Count:
8
Typical Turn-Off Delay Time:
18 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
40 W
Series:
PowerTrench
Maximum Gate Source Voltage:
±25 V
Height:
0.725mm
Typical Turn-On Delay Time:
11 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
269 mΩ
RoHs Compliant
Checking for live stock

This is Fairchild P-channel MOSFET 2.7 A 150 V PowerTrench 8-Pin Power 33 manufactured by Fairchild Semiconductor. The manufacturer part number is FDMC86261P. It is of power mosfet category . The given dimensions of the product include 3.3 x 3.3 x 0.725mm. While 2.7 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.3mm wide. The product offers single transistor configuration. It has a maximum of 150 v drain source voltage. The package is a sort of power 33. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 17 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 1021 pf @ -75 v . Its accurate length is 3.3mm. It contains 8 pins. Whereas, its typical turn-off delay time is about 18 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 40 w maximum power dissipation. The product powertrench, is a highly preferred choice for users. It features a maximum gate source voltage of ±25 v. In addition, the height is 0.725mm. In addition, it has a typical 11 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 269 mω maximum drain source resistance.

pdf icon
FDMC86261P, P-Channel PowerTrench MOSFET -150V, -9A, 160mOhm(Technical Reference)
