Dimensions:
4.9 x 3.9 x 1.575mm
Maximum Continuous Drain Current:
3.9 A
Transistor Material:
Si
Width:
3.9mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
200 V
Package Type:
SOIC
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
33 nC @ 10 V
Channel Type:
N
Typical Input Capacitance @ Vds:
1905 pF @ 100 V
Length:
4.9mm
Pin Count:
8
Typical Turn-Off Delay Time:
35 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
2.5 W
Series:
UltraFET
Maximum Gate Source Voltage:
±20 V
Height:
1.575mm
Typical Turn-On Delay Time:
22 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
148 mΩ

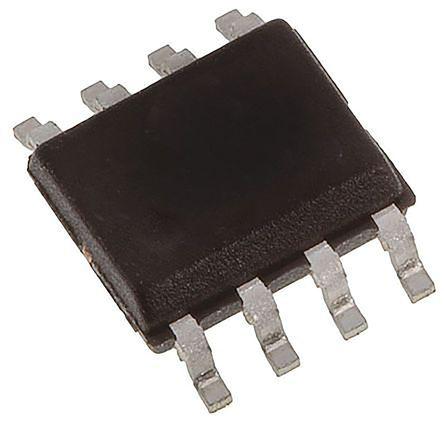

This is Fairchild N-channel MOSFET 3.9 A 200 V UltraFET 8-Pin SOIC manufactured by Fairchild Semiconductor. The manufacturer part number is FDS2672_F085. The given dimensions of the product include 4.9 x 3.9 x 1.575mm. While 3.9 a of maximum continuous drain current. The transistor is manufactured from highly durable si material. Furthermore, the product is 3.9mm wide. The product offers single transistor configuration. It has a maximum of 200 v drain source voltage. The package is a sort of soic. It consists of 1 elements per chip. Whereas its minimum gate threshold voltage includes 2v. It has a maximum operating temperature of +150 °c. With a typical gate charge at Vgs includes 33 nc @ 10 v. The product is available in [Cannel Type] channel. Its typical input capacitance @ Vds is 1905 pf @ 100 v . Its accurate length is 4.9mm. It contains 8 pins. Whereas, its typical turn-off delay time is about 35 ns . The product is available in surface mount configuration. The product carries enhancement channel mode. Provides up to 2.5 w maximum power dissipation. The product ultrafet, is a highly preferred choice for users. It features a maximum gate source voltage of ±20 v. In addition, the height is 1.575mm. In addition, it has a typical 22 ns turn-on delay time . Whereas, the minimum operating temperature of the product is -55 °c. It provides up to 148 mω maximum drain source resistance.
