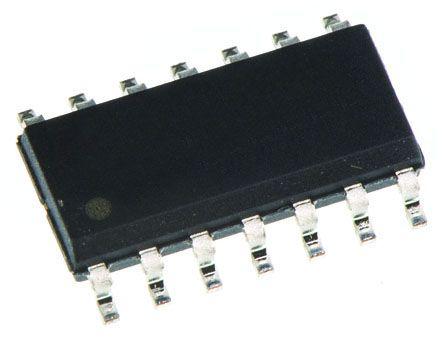

This is Quad 2-Input OR Schmitt Trigger Logic Gate 2 → 5.5 V 14-Pin SOIC manufactured by DiodesZetex. The manufacturer part number is 74LV32AS14-13. The given dimensions of the product include 8.74 x 3.99 x 1.48mm. The logic family is lv. Furthermore, the product is 3.99mm wide. It carries schmitt trigger input type. On the other hand, it is featured with 12ma of max. low level output current. While a -12ma of maximum high level output current. It provides up to 8.5 ns @ 50 pf maximum propagation delay time. While its minimum operating supply voltage is 2 v. Furthermore, it has apush-pull output. The package is a sort of soic. It has a maximum operating temperature of +125 °c. It contains 2 inputs per gate . Its accurate length is 8.74mm. It contains 14 pins. It has 5.5 v maximum operating supply voltage. The product is available in surface mount configuration. The primary function of logic includes or. In addition, the height is 1.48mm. Whereas, the minimum operating temperature of the product is -40 °c. Schmitt Trigger Input - yes. It carries 4 elements. Features 50pf of propagation delay test condition.
For more information please check the datasheets.
