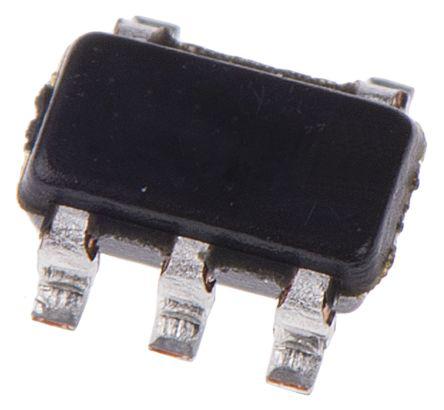

This is NC7SZ08M5X 2-Input AND Logic Gate 1.65 → 5.5 V 5-Pin SOT-23 manufactured by Fairchild Semiconductor. The manufacturer part number is NC7SZ08M5XX. On the other hand, it is featured with 32ma of max. low level output current. While a -32ma of maximum high level output current. The given dimensions of the product include 3 x 1.7 x 1.3mm. The product is available in surface mount configuration. It contains 2 inputs per gate . While its minimum operating supply voltage is 1.65 v. The primary function of logic includes and. The logic family is tinylogic uhs. In addition, the height is 1.3mm. Furthermore, the product is 1.7mm wide. Its accurate length is 3mm. The package is a sort of sot-23. Features 50pf of propagation delay test condition. Whereas, the minimum operating temperature of the product is -40 °c. It provides up to 4.5 ns @ 5 v, 5.2 ns @ 3.3 v maximum propagation delay time. Schmitt Trigger Input - no. It carries 1 elements. It has a maximum operating temperature of +85 °c. It contains 5 pins. It has 5.5 v maximum operating supply voltage.
For more information please check the datasheets.
