Category:
Power MOSFET
Dimensions:
6.73 x 6.22 x 2.39mm
Maximum Continuous Drain Current:
55 A
Transistor Material:
Si
Width:
6.22mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
35 V

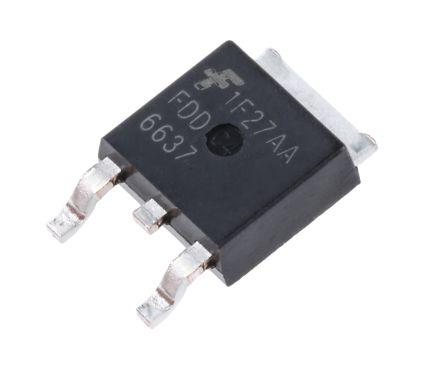

Package Type:
TO-252
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
45 nC @ 10 V
Channel Type:
P
Typical Input Capacitance @ Vds:
2370 pF @ -20 V
Length:
6.73mm
Pin Count:
3
Typical Turn-Off Delay Time:
62 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
57 W
Maximum Gate Source Voltage:
±25 V
Height:
2.39mm
Typical Turn-On Delay Time:
18 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
19 mΩ
