Category:
Power MOSFET
Dimensions:
2.15 x 2.15 x 0.8mm
Maximum Continuous Drain Current:
3.7 A
Transistor Material:
Si
Width:
2.15mm
Transistor Configuration:
Isolated
Maximum Drain Source Voltage:
30 V

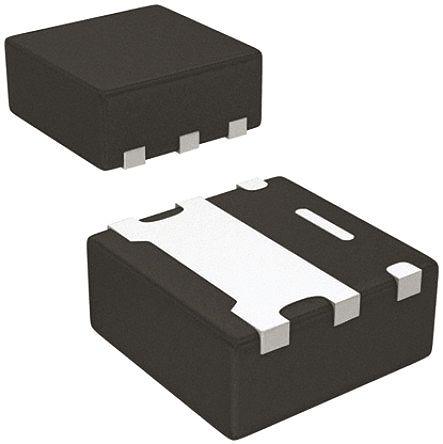

Package Type:
SC-70
Number of Elements per Chip:
2
Minimum Gate Threshold Voltage:
1V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
6 nC @ 10 V
Channel Type:
P
Typical Input Capacitance @ Vds:
275 pF @ -10 V
Length:
2.15mm
Pin Count:
6
Typical Turn-Off Delay Time:
15 ns
Mounting Type:
Surface Mount
Channel Mode:
Enhancement
Maximum Power Dissipation:
6.5 W
Maximum Gate Source Voltage:
±20 V
Height:
0.8mm
Typical Turn-On Delay Time:
35 ns
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
145 mΩ
