Current Rating:
5A
Dimensions:
30.81 x 12.55 x 8mm
Housing Material:
PBT
Width:
12.55mm
D-Sub Shell Size:
E
Contact Plating:
Gold over Nickel
Maximum Operating Temperature:
+125°C
Voltage Rating:
300 V ac @ 50 Hz
Gender:
Female
Body Orientation:
Straight
Length:
30.81mm
Mixed Contact Layout:
9W2
Mounting Hardware:
Screw
Mounting Type:
Plug-In Mount
Series:
D
Depth:
8mm
D Connector Type:
Standard D-Sub
Minimum Operating Temperature:
-55°C
Pitch:
2.74mm
Number of Contacts:
9
Contact Material:
Phosphor Bronze
Shell Size, Connector Layout:
1 (DE, E)
Manufacturer Standard Lead Time:
11 Weeks
Detailed Description:

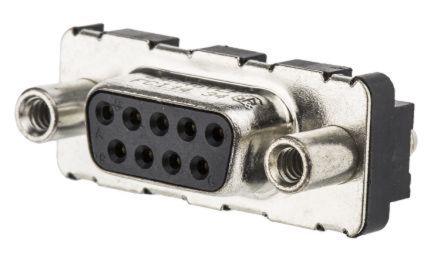

9 Position D-Sub Receptacle, Female Sockets Connector
Flange Feature:
Mating Side, Female Screwlock (4-40)
Current Rating:
5A
Housing Material:
Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature:
-55°C ~ 125°C
Connector Style:
D-Sub
Contact Finish Thickness:
30.0µin (0.76µm)
Number of Positions:
9
Number of Rows:
2
Standard Package:
870
Manufacturer:
Amphenol FCI
Voltage Rating:
300V
Material Flammability Rating:
UL94 V-0
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Gold
Termination:
Solder Paste
Features:
Board Guide, Pick and Place Cap
Mounting Type:
Through Hole
Color:
Black
Series:
Delta D
Shell Material, Finish:
Steel, Nickel Plated
Packaging:
Tape & Reel (TR)
Contact Type:
Signal
Contact Material:
Copper Alloy
