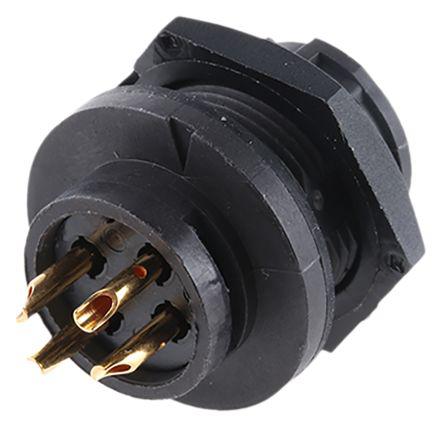

Switchcraft EN3 Series, 4 Pole Panel Mount Connector, with Male Contacts

Product Information
Mounting Type:
Panel Mount
Voltage Rating:
600 V ac
Series:
EN3
Body Orientation:
Straight
Contact Gender:
Male
Plug/Socket:
Plug
Termination Method:
Solder
Number of Contacts:
4
RoHs Compliant

Technical Documents
Switchcraft
EN3 Miniature Panel Mount Connector Product Data Sheet(Technical Reference)
Checking for live stock

More Information

Panel mount From Switchcraft, this EN3 Series panel mount connector boasts secure connection and exceptional environmental qualities- surpassing Coast Guard requirements in terms of water-tightness. Note Cable connectors will...
Panel mount From Switchcraft, this EN3 Series panel mount connector boasts secure connection and exceptional environmental qualities- surpassing Coast Guard requirements in terms of water-tightness. Note Cable connectors will mate with in-line connectors and panel connectors (plug to socket or vice-versa). In-line connectors do NOT mate with panel connectors. Switchcraft EN3 and EN2 Series Mini weather-tight connectors with integral O-ring and gasket, offering superior leakage protection and low part count. When mated or covered, the IP68 rating makes them ideal for use in process control, marine, medical instrumentation, transportation, industrial electronic applications and similar hostile environments.,A polarising keyway and 1//4 turn locking mechanism prevent misalignment and unintentional disconnection. Cable mounting assemblies feature a snap-in place strain relief mechanism. Thermoplastic rubber boots push fit over the rear of the connector and provide further strain relief for cables up to 6.7mm dia.Optional protective cap available separately for panel plugs and sockets when not in use. Body materials Panel Body and Contact Locking Disk: Thermoplastic polymer glass fibre. Interior: Thermoplastic rubber Current rating per contact in isolation 7.5A (3.0A –12 way only) Voltage rating 240V a.c. Contact resistance ≤ 3mΩ Insulation resistance 100MΩ Temperature range -40 to +65°C Contact material Copper alloy, with gold over nickel plating Termination type Solder bucket Wire gauge 20 awg (26awg – 12 way only) Matching cycles >600 Flammability rating UL94V-0 Note Cable connectors will mate with in-line connectors and panel connectors (plug to socket or vice-versa). In-line connectors do NOT mate with panel connectors.

Read more
