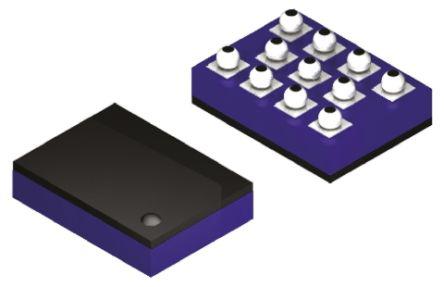

Texas Instruments SN74AVC4T234ZSUR
Product Information
Polarity:
Non-Inverting
Maximum Low Level Output Current:
12mA
Maximum High Level Output Current:
-12mA
Dimensions:
2.1 x 1.5 x 0.4mm
Mounting Type:
Surface Mount
Maximum Propagation Delay Time @ Maximum CL:
5.5ns
Number of Channels per Chip:
4
Logic Function:
Bus Transceiver
Logic Family:
74AVC
Height:
0.4mm
Width:
1.5mm
Length:
2.1mm
Package Type:
μCSP
Number of Elements per Chip:
1
Minimum Operating Temperature:
-40 °C
Maximum Operating Supply Voltage:
3.6 V
Minimum Operating Supply Voltage:
0.9 V
Maximum Operating Temperature:
+85 °C
Pin Count:
11
Propagation Delay Test Condition:
30pF
Translator Type:
Voltage Level
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Output Signal:
-
Operating Temperature:
-40°C ~ 85°C (TA)
Package / Case:
11-XFBGA, CSPBGA
Input Signal:
-
REACH Status:
REACH Unaffected
Output Type:
Non-Inverted
edacadModel:
SN74AVC4T234ZSUR Models
Data Rate:
380Mbps
edacadModelUrl:
/en/models/2687243
Package:
Tape & Reel (TR)
Channel Type:
Unidirectional
Moisture Sensitivity Level (MSL):
2 (1 Year)
Voltage - VCCB:
0.9 V ~ 3.6 V
Voltage - VCCA:
0.9 V ~ 3.6 V
Number of Circuits:
1
Channels per Circuit:
4
Features:
-
Mounting Type:
Surface Mount
Series:
74AVC
Supplier Device Package:
11-UCSP (2x1.4)
Base Product Number:
74AVC4T234
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search SN74AVC4T234ZSUR on website for other similar products.
We accept all major payment methods for all products including ET10977045. Please check your shopping cart at the time of order.
You can order Texas Instruments brand products with SN74AVC4T234ZSUR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Translators, Level Shifters category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Texas Instruments SN74AVC4T234ZSUR. You can also check on our website or by contacting our customer support team for further order details on Texas Instruments SN74AVC4T234ZSUR.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET10977045 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Texas Instruments" products on our website by using Enrgtech's Unique Manufacturing Part Number ET10977045.
Yes. We ship SN74AVC4T234ZSUR Internationally to many countries around the world.
This is manufactured by Texas Instruments. The manufacturer part number is SN74AVC4T234ZSUR. While providing non-inverting polarity. On the other hand, it is featured with 12ma of max. low level output current. While a -12ma of maximum high level output current. The given dimensions of the product include 2.1 x 1.5 x 0.4mm. The product is available in surface mount configuration. It provides up to 5.5ns maximum propagation delay time. It comprises 4 channels per chip. The primary function of logic includes bus transceiver. The logic family is 74avc. In addition, the height is 0.4mm. Furthermore, the product is 1.5mm wide. Its accurate length is 2.1mm. The package is a sort of μcsp. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -40 °c. It has 3.6 v maximum operating supply voltage. While its minimum operating supply voltage is 0.9 v. It has a maximum operating temperature of +85 °c. It contains 11 pins. Features 30pf of propagation delay test condition. The translator is a voltage level type. It is assigned with possible HTSUS value of 8542.39.0001. The product is rohs3 compliant. The product has -40°c ~ 85°c (ta) operating temperature range. Moreover, the product comes in 11-xfbga, cspbga. In addition, it is reach unaffected. Furthermore, it has anon-inverted output. It has a maximised data speed rate of 380mbps. It is shipped in tape & reel (tr) package . The product is available in [Cannel Type] channel. Its typical moisture sensitivity level is 2 (1 year). While the VCCB voltage range is 0.9 v ~ 3.6 v. Provides up to 0.9 v ~ 3.6 v voltage. It integrates 1 circuits. It includes 4 channels per circuit. The product 74avc, is a highly preferred choice for users. 11-ucsp (2x1.4) is the supplier device package value. Moreover, it corresponds to 74avc4t234, a base product number of the product. The product is designated with the ear99 code number.
