ON Semiconductor CPH5905G-TL-E
Product Information
Maximum Drain Source Voltage:
15 V
Configuration:
Single

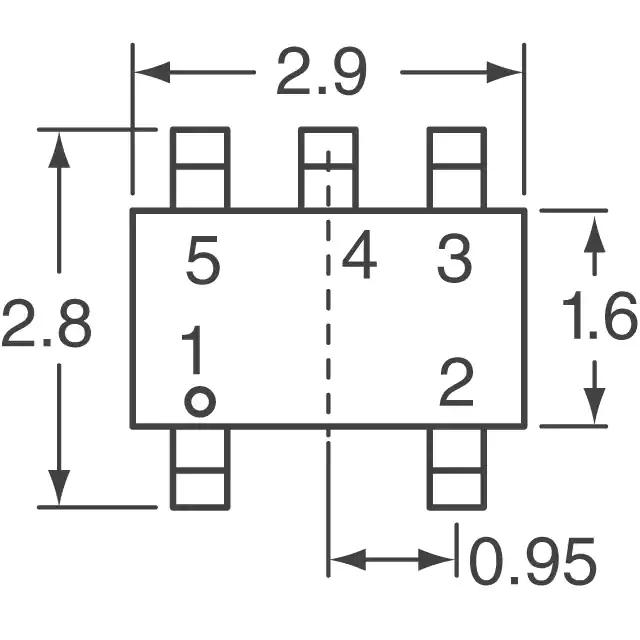

Dimensions:
2.9 x 1.6 x 0.9mm
Mounting Type:
Surface Mount
Idss Drain-Source Cut-off Current:
10 → 20mA
Source Gate On-Capacitance:
2.9pF
Height:
0.9mm
Width:
1.6mm
Length:
2.9mm
Package Type:
CPH
Maximum Drain Gate Voltage:
-15V
Drain Gate On-Capacitance:
10pF
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
5
Transistor Configuration:
Single
Base Part Number:
CPH5905
Detailed Description:
Transistor General Purpose NPN, N-Channel 50V NPN, 15V N-Channel 150mA NPN, 50mA N-Channel Surface Mount 5-CPH
Transistor Type:
NPN, N-Channel
Voltage - Rated:
50V NPN, 15V N-Channel
Mounting Type:
Surface Mount
Supplier Device Package:
5-CPH
Packaging:
Cut Tape (CT)
Applications:
General Purpose
Customer Reference:
Package / Case:
SOT-23-5 Thin, TSOT-23-5
Current Rating (Amps):
150mA NPN, 50mA N-Channel
Manufacturer:
ON Semiconductor
Checking for live stock
FAQs
Yes. You can also search CPH5905G-TL-E on website for other similar products.
We accept all major payment methods for all products including ET14515863. Please check your shopping cart at the time of order.
You can order ON Semiconductor brand products with CPH5905G-TL-E directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - Special Purpose category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ON Semiconductor CPH5905G-TL-E. You can also check on our website or by contacting our customer support team for further order details on ON Semiconductor CPH5905G-TL-E.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14515863 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14515863.
Yes. We ship CPH5905G-TL-E Internationally to many countries around the world.
This is manufactured by ON Semiconductor. The manufacturer part number is CPH5905G-TL-E. It has a maximum of 15 v drain source voltage. The product is available in single configuration. The given dimensions of the product include 2.9 x 1.6 x 0.9mm. The product is available in surface mount configuration. Moreover, it has 10 → 20ma Idss drain source cut-off current . It has 2.9pf source gate On-capacitance . In addition, the height is 0.9mm. Furthermore, the product is 1.6mm wide. Its accurate length is 2.9mm. The package is a sort of cph. It has a maximum -15v drain gate voltage . Additionally, it has 10pf drain gate on-capacitance . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 5 pins. The product offers single transistor configuration. Base Part Number: cph5905. It features transistor general purpose npn, n-channel 50v npn, 15v n-channel 150ma npn, 50ma n-channel surface mount 5-cph. The transistor is a npn, n-channel type. It also exhibits voltage rating of 50v npn, 15v n-channel. 5-cph is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. The product is widely employed in general purpose. Moreover, the product comes in sot-23-5 thin, tsot-23-5. Additionally, the product's output is 150ma npn, 50ma n-channel. The on semiconductor's product offers user-desired applications.
