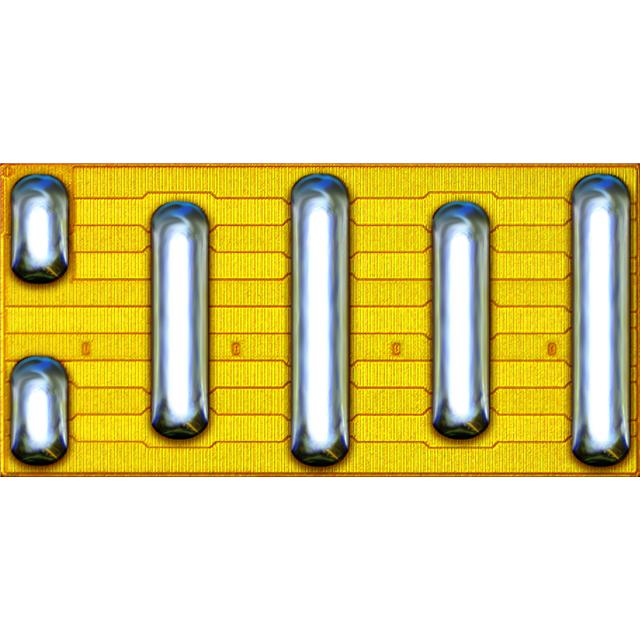

EPC EPC2059

  • Enrgtech Part No: ET20645649
  • |
  • Manufacturer Part No:

    EPC2059

  • |
  • Manufacturer: EPC
EPC2059 EPC
EPC

Product Information

FET Feature:
-
HTSUS:
8541.29.0040
Vgs(th) (Max) @ Id:
2.5V @ 3mA
Operating Temperature:
-40°C ~ 150°C (TJ)
Package / Case:
Die
Rds On (Max) @ Id, Vgs:
9mOhm @ 10A, 5V
Gate Charge (Qg) (Max) @ Vgs:
7.4 nC @ 5 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
edacadModel:
EPC2059 Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
5V
edacadModelUrl:
/en/models/13405058
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
170 V
Vgs (Max):
+6V, -4V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
-
Input Capacitance (Ciss) (Max) @ Vds:
836 pF @ 85 V
standardLeadTime:
16 Weeks
Mounting Type:
Surface Mount
Series:
eGaN®
Supplier Device Package:
Die
Current - Continuous Drain (Id) @ 25°C:
24A (Ta)
Technology:
GaNFET (Gallium Nitride)
Base Product Number:
EPC20
ECCN:
EAR99
Checking for live stock

This is 2059 manufactured by EPC. The manufacturer part number is EPC2059. It is assigned with possible HTSUS value of 8541.29.0040. The typical Vgs (th) (max) of the product is 2.5v @ 3ma. The product has -40°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in die. It has a maximum Rds On and voltage of 9mohm @ 10a, 5v. The maximum gate charge and given voltages include 7.4 nc @ 5 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 5v. It is shipped in tape & reel (tr) package . The product has a 170 v drain to source voltage. The maximum Vgs rate is +6v, -4v. Its typical moisture sensitivity level is 1 (unlimited). The product's input capacitance at maximum includes 836 pf @ 85 v. It has a long 16 weeks standard lead time. The product is available in surface mount configuration. The product egan®, is a highly preferred choice for users. die is the supplier device package value. The continuous current drain at 25°C is 24a (ta). This product use ganfet (gallium nitride) technology. Moreover, it corresponds to epc20, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
EPC2xxx TEST SITE 03/Nov/2023(PCN Assembly/Origin)
pdf icon
EPC2059(Datasheets)
pdf icon
EPC REACH(Environmental Information)
pdf icon
EPC RoHS & Halogen Cert(Environmental Information)
