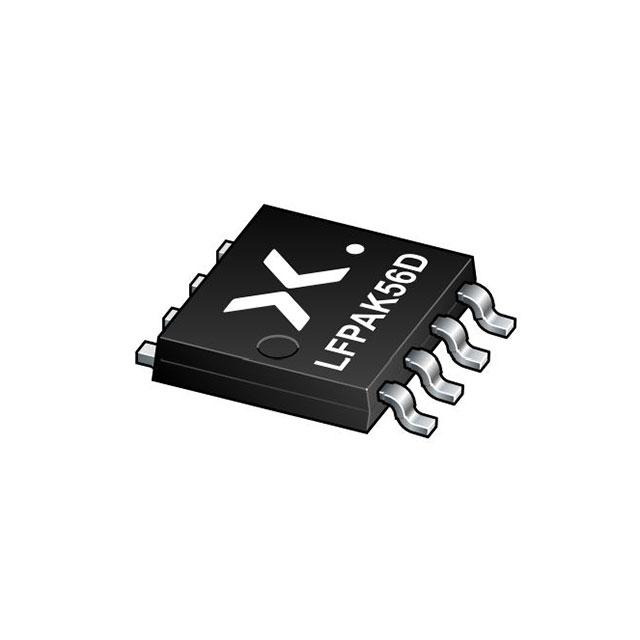

Nexperia USA Inc. PSMN4R2-40VSHX
Product Information
FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
3.6V @ 1mA
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
SOT-1205, 8-LFPAK56
Rds On (Max) @ Id, Vgs:
4.2mOhm @ 20A, 10V
Gate Charge (Qg) (Max) @ Vgs:
37nC @ 10V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
edacadModel:
PSMN4R2-40VSHX Models
Current - Continuous Drain (Id) @ 25°C:
98A (Ta)
edacadModelUrl:
/en/models/13978585
Configuration:
2 N-Channel (Half Bridge)
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
40V
Moisture Sensitivity Level (MSL):
3 (168 Hours)
Input Capacitance (Ciss) (Max) @ Vds:
2590pF @ 25V
standardLeadTime:
6 Weeks
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
LFPAK56D
Power - Max:
85W (Ta)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
PSMN4R2
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PSMN4R2-40VSHX on website for other similar products.
We accept all major payment methods for all products including ET20957902. Please check your shopping cart at the time of order.
You can order Nexperia USA Inc. brand products with PSMN4R2-40VSHX directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - FETs, MOSFETs - Arrays category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Nexperia USA Inc. PSMN4R2-40VSHX. You can also check on our website or by contacting our customer support team for further order details on Nexperia USA Inc. PSMN4R2-40VSHX.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET20957902 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia USA Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET20957902.
Yes. We ship PSMN4R2-40VSHX Internationally to many countries around the world.
This is manufactured by Nexperia USA Inc.. The manufacturer part number is PSMN4R2-40VSHX. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 3.6v @ 1ma. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in sot-1205, 8-lfpak56. It has a maximum Rds On and voltage of 4.2mohm @ 20a, 10v. The maximum gate charge and given voltages include 37nc @ 10v. The product is rohs3 compliant. In addition, it is reach unaffected. The continuous current drain at 25°C is 98a (ta). The product is available in 2 n-channel (half bridge) configuration. It is shipped in tape & reel (tr) package . The product has a 40v drain to source voltage. Its typical moisture sensitivity level is 3 (168 hours). The product's input capacitance at maximum includes 2590pf @ 25v. It has a long 6 weeks standard lead time. The product is available in surface mount configuration. lfpak56d is the supplier device package value. The maximum power of the product is 85w (ta). This product use mosfet (metal oxide) technology. Moreover, it corresponds to psmn4r2, a base product number of the product. The product is designated with the ear99 code number.
