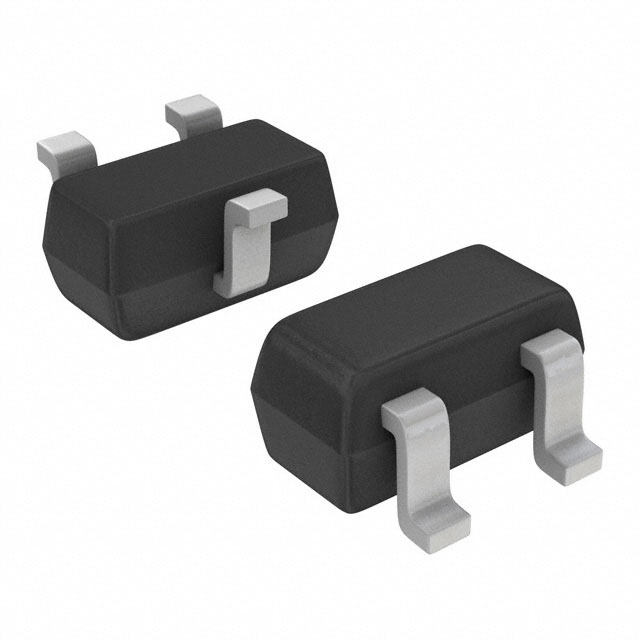

Panasonic Electronic Components 2SC536300L
Product Information
Current - Collector (Ic) (Max):
30mA
HTSUS:
8541.21.0075
RoHS Status:
RoHS non-compliant
Operating Temperature:
125°C (TJ)
Package / Case:
SC-75, SOT-416
DC Current Gain (hFE) (Min) @ Ic, Vce:
40 @ 10mA, 3V
Noise Figure (dB Typ @ f):
1.7dB @ 900MHz
Frequency - Transition:
10GHz
Voltage - Collector Emitter Breakdown (Max):
6V
Gain:
6.5dB
Manufacturer:
Panasonic Electronic Components
Transistor Type:
NPN
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SSmini3-G1
Packaging:
Tape & Reel (TR)
Power - Max:
125mW
Base Product Number:
2SC5363
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search 2SC536300L on website for other similar products.
We accept all major payment methods for all products including ET16409555. Please check your shopping cart at the time of order.
You can order Panasonic Electronic Components brand products with 2SC536300L directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - Bipolar (BJT) - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electronic Components 2SC536300L. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electronic Components 2SC536300L.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16409555 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electronic Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16409555.
Yes. We ship 2SC536300L Internationally to many countries around the world.
This is manufactured by Panasonic Electronic Components. The manufacturer part number is 2SC536300L. The maximum collector current includes 30ma. It is assigned with possible HTSUS value of 8541.21.0075. The product is rohs non-compliant. The product has 125°c (tj) operating temperature range. Moreover, the product comes in sc-75, sot-416. Furthermore, 40 @ 10ma, 3v is the minimum DC current gain at given voltage. It has given noise figure of 1.7db @ 900mhz at given frequency. The transition frequency of the product is 10ghz. The maximum collector emitter breakdown voltage of the product is 6v. The 6.5db is the gain value of a bespoke product. The panasonic electronic components's product offers user-desired applications. The transistor is a npn type. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. ssmini3-g1 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The maximum power of the product is 125mw. Moreover, it corresponds to 2sc5363, a base product number of the product. The product is designated with the ear99 code number.
