Transistor Type:
NPN
Dimensions:
1.7 x 0.98 x 0.78mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
250 mW
Maximum Collector Emitter Saturation Voltage:
0.3 V
Maximum Collector Base Voltage:
60 V
Maximum Collector Emitter Voltage:
40 V
Maximum Base Emitter Saturation Voltage:
0.95 V
Maximum Operating Frequency:
100 MHz
Maximum Emitter Base Voltage:
6 V
Package Type:
SOT-523 (SC-89)
Number of Elements per Chip:
1
Maximum DC Collector Current:
200 mA
Maximum Operating Temperature:
+150 °C
Pin Count:
3
Transistor Configuration:
Single
Base Part Number:
MMBT3904
Detailed Description:

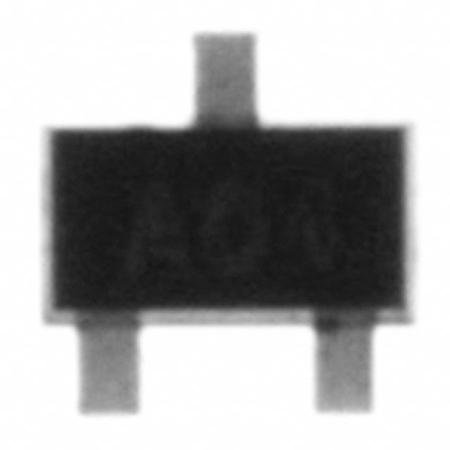

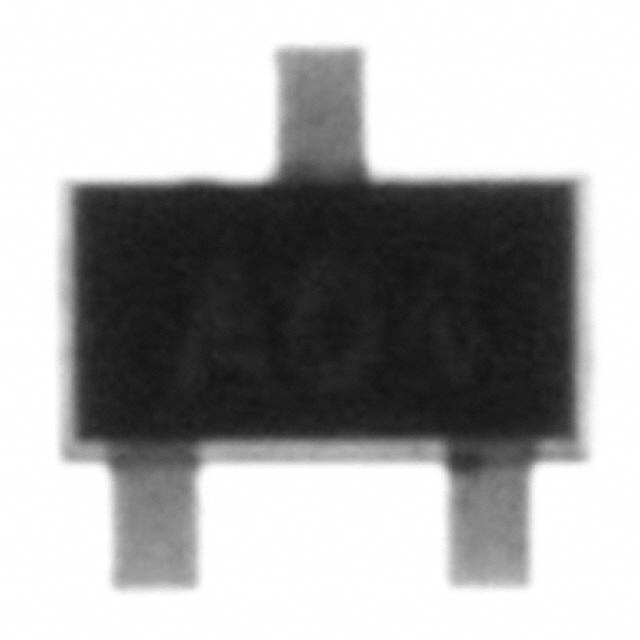

Bipolar (BJT) Transistor NPN 40V 200mA 300MHz 250mW Surface Mount SOT-523F
Transistor Type:
NPN
Frequency - Transition:
300MHz
Mounting Type:
Surface Mount
Vce Saturation (Max) @ Ib, Ic:
300mV @ 5mA, 50mA
Supplier Device Package:
SOT-523F
Voltage - Collector Emitter Breakdown (Max):
40V
Packaging:
Cut Tape (CT)
Operating Temperature:
150°C (TJ)
Power - Max:
250mW
Customer Reference:
Package / Case:
SC-89, SOT-490
Current - Collector (Ic) (Max):
200mA
DC Current Gain (hFE) (Min) @ Ic, Vce:
100 @ 10mA, 1V
Manufacturer:
ON Semiconductor
