Dimensions:
1.7 x 0.98 x 0.78mm
Maximum Collector Emitter Saturation Voltage:
1 V
Width:
0.98mm
Transistor Configuration:
Single
Maximum Operating Frequency:
100 MHz
Package Type:
SOT-523 (SC-89)
Number of Elements per Chip:
1
Maximum Operating Temperature:
+150 °C
Transistor Type:
NPN
Maximum Collector Base Voltage:
75 V
Maximum Base Emitter Saturation Voltage:
2 V
Maximum Emitter Base Voltage:
6 V
Length:
1.7mm
Maximum DC Collector Current:
600 mA
Pin Count:
3
Minimum DC Current Gain:
35
Mounting Type:
Surface Mount
Maximum Power Dissipation:
250 mW
Maximum Collector Emitter Voltage:
40 V
Height:
0.78mm
Base Part Number:
MMBT2222
Detailed Description:

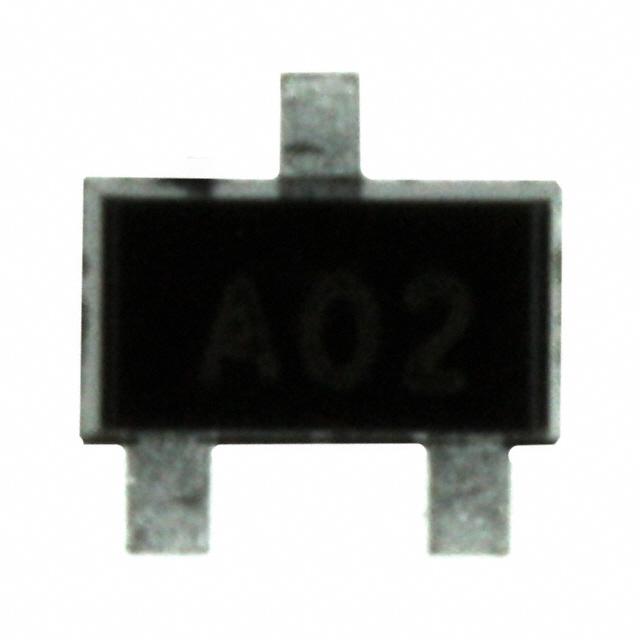

Bipolar (BJT) Transistor NPN 40V 600mA 300MHz 250mW Surface Mount SOT-523F
Transistor Type:
NPN
Frequency - Transition:
300MHz
Mounting Type:
Surface Mount
Vce Saturation (Max) @ Ib, Ic:
1V @ 50mA, 500mA
Supplier Device Package:
SOT-523F
Voltage - Collector Emitter Breakdown (Max):
40V
Packaging:
Cut Tape (CT)
Operating Temperature:
150°C (TJ)
Power - Max:
250mW
Customer Reference:
Package / Case:
SC-89, SOT-490
Current - Collector (Ic) (Max):
600mA
DC Current Gain (hFE) (Min) @ Ic, Vce:
100 @ 150mA, 1V
Manufacturer:
ON Semiconductor
