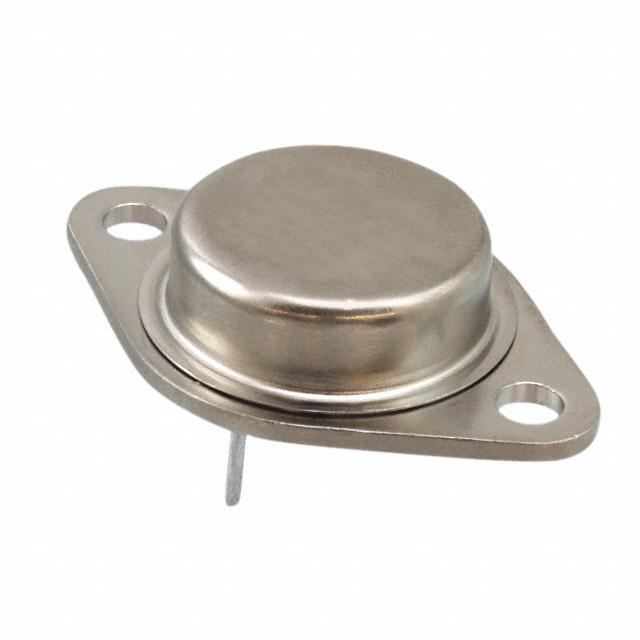

Microsemi Corporation JANTX2N3772
Product Information
Manufacturer Standard Lead Time:
30 Weeks
Current - Collector (Ic) (Max):
20A
Detailed Description:
Bipolar (BJT) Transistor NPN 60V 20A 6W Through Hole TO-3
DC Current Gain (hFE) (Min) @ Ic, Vce:
15 @ 10A, 4V
Transistor Type:
NPN
Mounting Type:
Through Hole
Vce Saturation (Max) @ Ib, Ic:
4V @ 4A, 20A
Series:
Military, MIL-PRF-19500/518
Package / Case:
TO-204AA, TO-3
Supplier Device Package:
TO-3
Voltage - Collector Emitter Breakdown (Max):
60V
Packaging:
Bulk
Operating Temperature:
-65°C ~ 200°C (TJ)
Power - Max:
6W
Customer Reference:
Notification:
QPL or Military Specs are for reference only. Parts are not for military use. See Terms and Conditions.
Current - Collector Cutoff (Max):
5mA
Manufacturer:
Microsemi Corporation
Checking for live stock
FAQs
Yes. You can also search JANTX2N3772 on website for other similar products.
We accept all major payment methods for all products including ET11882601. Please check your shopping cart at the time of order.
You can order Microsemi Corporation brand products with JANTX2N3772 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - Bipolar (BJT) - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Microsemi Corporation JANTX2N3772. You can also check on our website or by contacting our customer support team for further order details on Microsemi Corporation JANTX2N3772.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11882601 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Microsemi Corporation" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11882601.
Yes. We ship JANTX2N3772 Internationally to many countries around the world.
This is manufactured by Microsemi Corporation. The manufacturer part number is JANTX2N3772. It has typical 30 weeks of manufacturer standard lead time. The maximum collector current includes 20a. It features bipolar (bjt) transistor npn 60v 20a 6w through hole to-3. Furthermore, 15 @ 10a, 4v is the minimum DC current gain at given voltage. The transistor is a npn type. The product is available in through hole configuration. The 4v @ 4a, 20a is the maximum Vce saturation. The product military, mil-prf-19500/518, is a highly preferred choice for users. Moreover, the product comes in to-204aa, to-3. to-3 is the supplier device package value. The maximum collector emitter breakdown voltage of the product is 60v. In addition, bulk is the available packaging type of the product. The product has -65°c ~ 200°c (tj) operating temperature range. The maximum power of the product is 6w. Note: qpl or military specs are for reference only. parts are not for military use. see terms and conditions.. In addition, 5ma is the maximum current at collector cutoff. The microsemi corporation's product offers user-desired applications.
