Switch Configuration:
SPDT
Time Increment:
Hours, Minutes, Seconds
Mounting Type:
DIN Rail
Maximum Current:
(dc) 1 A, (ac) 3A
Time Range:
0.05 → 100 h, 0.05 → 100 min, 0.05 → 100s
Maximum Voltage:
250V ac/dc
Power Supply:
External
Length:
57mm
Mode of Operation:
Additive ON Delay with Auxiliary Voltage, Flash Start with Interval, OFF Delay with Auxiliary Voltage, ON Delay, ON Delay & OFF Delay with Auxiliary Voltage, Passing Break Contact with Auxiliary Voltage, Passing Make Contact, Pulse Former with Auxiliary Voltage
Contact Configuration:
SPDT
Width:
45mm
Depth:
73mm
Supply Voltage:
110 → 240 V ac, 24V ac/dc
Minimum Operating Temperature:
-25°C
Number of Timer Functions:
Multi Function
Number of Contacts:
1
Maximum Operating Temperature:
+60°C
Terminal Type:
Screw
RoHS Status:
ROHS3 Compliant
Relay Type:
Mechanical Relay
Termination Style:
Screw Terminal
Timing Initiate Method:
Input Voltage
Function:
Programmable (Multi-Function)
REACH Status:
REACH Unaffected
Package:
Box
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
SPDT (1 Form C)
Contact Rating @ Voltage:
3A @ 250VAC
standardLeadTime:
2 Weeks
Delay Time:
0.05 Sec ~ 100 Sec
Timing Adjustment Method:
Screwdriver Slot
Mounting Type:
Chassis Mount, DIN Rail
Series:
SIRIUS
Voltage - Supply:
200 ~ 240VAC, 24VAC/DC
Base Product Number:
3RP2005

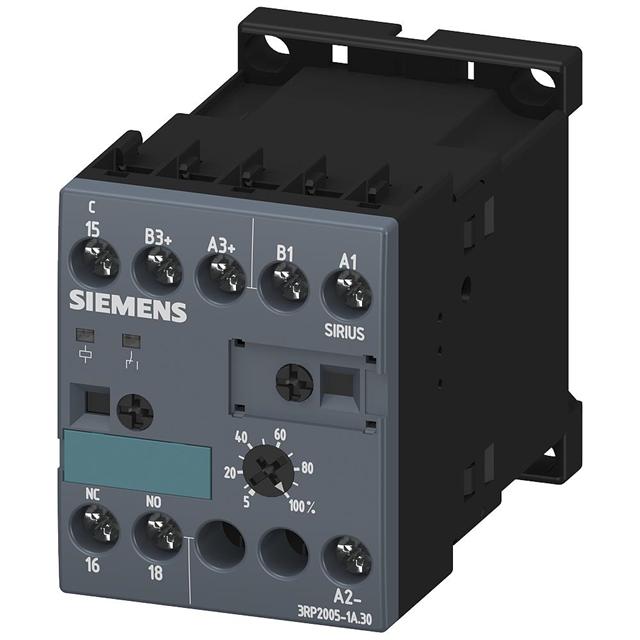

This is Multi Function Timer Relay Screw 0.05 → 100 h 0.05 → 100 min 0.05 → 100 s SPDT manufactured by Siemens. The manufacturer part number is 3RP2005-1AP30. It is created with a/an spdt switch configuration . Its time increment is in hours, minutes, seconds . The product is available in din rail configuration. It also carries (dc) 1 a, (ac) 3a maximum current. It has a standard 0.05 → 100 h, 0.05 → 100 min, 0.05 → 100s time range . It has a maximum 250v ac/dc voltage . It includes a/an external power supply . Its accurate length is 57mm. Its mode of operation is additive on delay with auxiliary voltage, flash start with interval, off delay with auxiliary voltage, on delay, on delay & off delay with auxiliary voltage, passing break contact with auxiliary voltage, passing make contact, pulse former with auxiliary voltage . The contact is equipped with spdt configuration. Furthermore, the product is 45mm wide. The product comes in 73mm depth. Features 110 → 240 v ac, 24v ac/dc supply voltage. Whereas, the minimum operating temperature of the product is -25°c. It includes a multi function functions timer . The product contains 1 contacts. It has a maximum operating temperature of +60°c. The terminal is a screw type. The product is rohs3 compliant. This is basically a mechanical relay. Moreover, it has screw terminal terminal style. It has input voltage mechanism for timing initiation. It performs basic function of programmable (multi-function). In addition, it is reach unaffected. It is shipped in box package . Its typical moisture sensitivity level is not applicable. It has an integral spdt (1 form c) circuit. The given contact rating of the product and its voltage includes 3a @ 250vac. It has a long 2 weeks standard lead time. A product has a 0.05 sec ~ 100 sec delay time. While the timing adjustment mechanism includes screwdriver slot. The product is available in chassis mount, din rail configuration. The product sirius, is a highly preferred choice for users. It has optimum voltage supply of 200 ~ 240vac, 24vac/dc. Moreover, it corresponds to 3rp2005, a base product number of the product.
