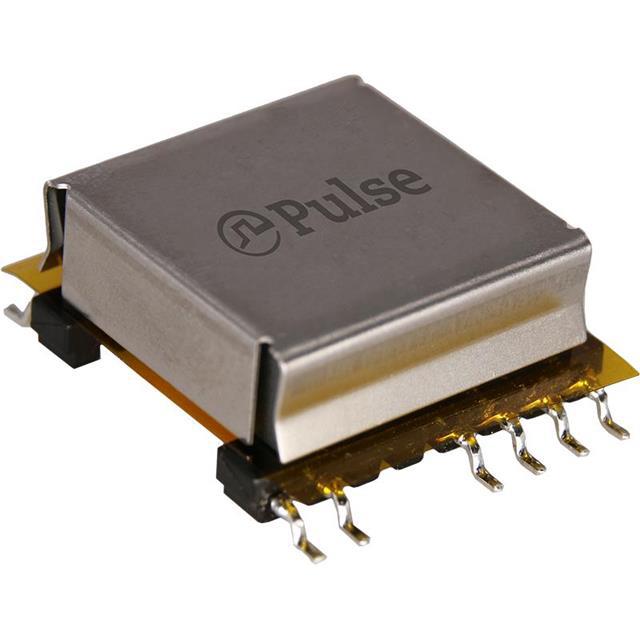

Pulse Electronics PG1895NLT
Product Information
Style:
Wirewound
HTSUS:
8504.31.2000
RoHS Status:
ROHS3 Compliant
Inductance @ Frequency:
48µH @ 100kHz
Operating Temperature:
-40°C ~ 125°C
Type:
-
Height - Seated (Max):
0.472" (12.00mm)
Voltage - Primary:
12 ~ 36V
REACH Status:
REACH Unaffected
edacadModel:
PG1895NLT Models
Applications:
Flyback Converters
Chipset Manufacturer:
-
Footprint:
1.157" L x 1.004" W (29.40mm x 25.50mm)
Package:
Tape & Reel (TR)
Voltage - Auxiliary:
23V @ 30mA
Size / Dimension:
1.004" L x 1.063" W (25.50mm x 27.00mm)
edacadModelUrl:
/en/models/17085392
standardLeadTime:
11 Weeks
Voltage - Isolation:
2420V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Intended Chipset:
-
Series:
-
Frequency:
100kHz
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PG1895NLT on website for other similar products.
We accept all major payment methods for all products including ET24097274. Please check your shopping cart at the time of order.
You can order Pulse Electronics brand products with PG1895NLT directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Switching Converter, SMPS Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Pulse Electronics PG1895NLT. You can also check on our website or by contacting our customer support team for further order details on Pulse Electronics PG1895NLT.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET24097274 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Pulse Electronics" products on our website by using Enrgtech's Unique Manufacturing Part Number ET24097274.
Yes. We ship PG1895NLT Internationally to many countries around the world.
This is manufactured by Pulse Electronics. The manufacturer part number is PG1895NLT. Additionally, the product is designed with wirewound Style. It is assigned with possible HTSUS value of 8504.31.2000. The product is rohs3 compliant. Typical inductance of 48µh @ 100khz. The product has -40°c ~ 125°c operating temperature range. It has the maximum seated height of 0.472" (12.00mm). Features primary voltage 12 ~ 36v. In addition, it is reach unaffected. The product is widely employed in flyback converters. Footprint Options include 1.157" l x 1.004" w (29.40mm x 25.50mm). It is shipped in tape & reel (tr) package . Carries 23v @ 30ma of auxiliary voltage. The product's diameters include 1.004" l x 1.063" w (25.50mm x 27.00mm). It has a long 11 weeks standard lead time. 2420v of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. Supplied with 100khz of frequency. The product is designated with the ear99 code number.
