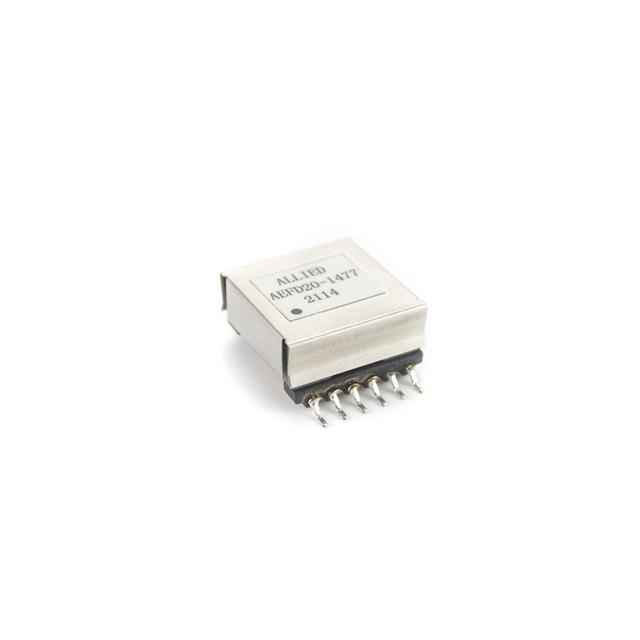

Allied Components International AEFD20-1477
Product Information
Style:
-
HTSUS:
8504.50.4000
RoHS Status:
ROHS3 Compliant
Inductance @ Frequency:
38.3µH
Operating Temperature:
-20°C ~ 125°C
Voltage - Primary:
36 ~ 72V
Height - Seated (Max):
0.457" (11.60mm)
Type:
For DC/DC Converters
REACH Status:
Vendor Undefined
Applications:
Flyback Converters
Chipset Manufacturer:
-
Footprint:
1.161" L x 0.866" W (29.50mm x 22.00mm)
Package:
Tray
Voltage - Auxiliary:
13V @ 20mA
Size / Dimension:
0.866" L x 0.866" W (22.00mm x 22.00mm)
Voltage - Isolation:
1800VAC
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Mounting Type:
Surface Mount
Intended Chipset:
-
Series:
-
Frequency:
200kHz
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search AEFD20-1477 on website for other similar products.
We accept all major payment methods for all products including ET23807334. Please check your shopping cart at the time of order.
You can order Allied Components International brand products with AEFD20-1477 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Switching Converter, SMPS Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Allied Components International AEFD20-1477. You can also check on our website or by contacting our customer support team for further order details on Allied Components International AEFD20-1477.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23807334 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Allied Components International" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23807334.
Yes. We ship AEFD20-1477 Internationally to many countries around the world.
This is manufactured by Allied Components International. The manufacturer part number is AEFD20-1477. It is assigned with possible HTSUS value of 8504.50.4000. The product is rohs3 compliant. Typical inductance of 38.3µh. The product has -20°c ~ 125°c operating temperature range. Features primary voltage 36 ~ 72v. It has the maximum seated height of 0.457" (11.60mm). It comes in for dc/dc converters configuration. In addition, it is vendor undefined. The product is widely employed in flyback converters. Footprint Options include 1.161" l x 0.866" w (29.50mm x 22.00mm). It is shipped in tray package . Carries 13v @ 20ma of auxiliary voltage. The product's diameters include 0.866" l x 0.866" w (22.00mm x 22.00mm). 1800vac of isolation voltage. Its typical moisture sensitivity level is 1 (unlimited). The product is available in surface mount configuration. Supplied with 200khz of frequency. The product is designated with the ear99 code number.
