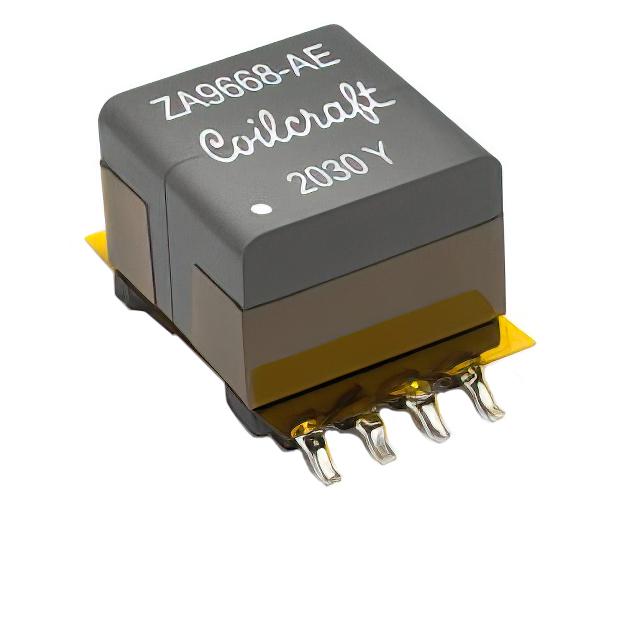

COILCRAFT ZA9668-AED
Product Information
Style:
-
HTSUS:
8504.32.0000
RoHS Status:
ROHS3 Compliant
Inductance @ Frequency:
18µH @ 500kHz
Operating Temperature:
-40°C ~ 125°C
Voltage - Primary:
-
Height - Seated (Max):
0.450" (11.43mm)
Type:
For DC/DC Converters
REACH Status:
REACH Unaffected
Applications:
Isolated Buck Converters
Chipset Manufacturer:
STMicroelectronics
Footprint:
0.600" L x 0.531" W (15.24mm x 13.50mm)
Package:
Strip
Voltage - Auxiliary:
-
Size / Dimension:
-
Voltage - Isolation:
3300Vrms
Mounting Type:
Surface Mount
Intended Chipset:
A6986I, L6986I
Series:
-
Frequency:
500kHz
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search ZA9668-AED on website for other similar products.
We accept all major payment methods for all products including ET23272026. Please check your shopping cart at the time of order.
You can order COILCRAFT brand products with ZA9668-AED directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Switching Converter, SMPS Transformers category are shipped in lowest possible time.
You will get a confirmation email regarding your order of COILCRAFT ZA9668-AED. You can also check on our website or by contacting our customer support team for further order details on COILCRAFT ZA9668-AED.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET23272026 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "COILCRAFT" products on our website by using Enrgtech's Unique Manufacturing Part Number ET23272026.
Yes. We ship ZA9668-AED Internationally to many countries around the world.
This is manufactured by COILCRAFT. The manufacturer part number is ZA9668-AED. It is assigned with possible HTSUS value of 8504.32.0000. The product is rohs3 compliant. Typical inductance of 18µh @ 500khz. The product has -40°c ~ 125°c operating temperature range. It has the maximum seated height of 0.450" (11.43mm). It comes in for dc/dc converters configuration. In addition, it is reach unaffected. The product is widely employed in isolated buck converters. It is stmicroelectronics's product with versatile user-desired applications. Footprint Options include 0.600" l x 0.531" w (15.24mm x 13.50mm). It is shipped in strip package . 3300vrms of isolation voltage. The product is available in surface mount configuration. Intendent Chipset Specs - a6986i, l6986i. Supplied with 500khz of frequency. The product is designated with the ear99 code number.
