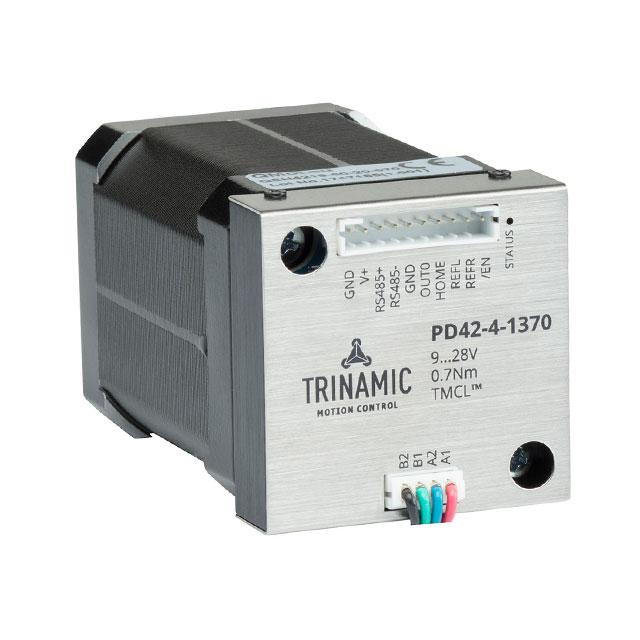

Analog Devices Inc. PD42-4-1370-TMCL
Product Information
HTSUS:
8537.10.9170
RoHS Status:
ROHS3 Compliant
Termination Style:
Connector
Operating Temperature:
-20°C ~ 50°C
Approval Agency:
-
Steps per Revolution:
200
NEMA Frame Size:
17
Type:
Hybrid
Coil Resistance:
2.3 Ohms
Voltage - Rated:
4.4VDC
Coil Type:
Bipolar
Rotor Inertia:
102gcm²
REACH Status:
REACH Unaffected
Mounting Hole Spacing:
1.220" (31.00mm)
Length - Shaft and Bearing:
0.945" (24.00mm)
Torque - Holding (oz-in / mNm):
99.1 / 700
Accuracy:
±5%
Diameter - Shaft:
0.197" (5.00mm)
Package:
Bulk
Size / Dimension:
Square - 1.654" x 1.654" (42.00mm x 42.00mm)
standardLeadTime:
73 Weeks
Current Rating (Amps):
2 A
Step Angle:
1.8°
Moisture Sensitivity Level (MSL):
Not Applicable
Features:
Integrated Controller, Flatted Shaft
Series:
PANdrive™
Base Product Number:
PD42-4
ECCN:
EAR99
Checking for live stock
FAQs
Yes. You can also search PD42-4-1370-TMCL on website for other similar products.
We accept all major payment methods for all products including ET26014965. Please check your shopping cart at the time of order.
You can order Analog Devices Inc. brand products with PD42-4-1370-TMCL directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Stepper Motors category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Analog Devices Inc. PD42-4-1370-TMCL. You can also check on our website or by contacting our customer support team for further order details on Analog Devices Inc. PD42-4-1370-TMCL.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET26014965 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Analog Devices Inc." products on our website by using Enrgtech's Unique Manufacturing Part Number ET26014965.
Yes. We ship PD42-4-1370-TMCL Internationally to many countries around the world.
This is manufactured by Analog Devices Inc.. The manufacturer part number is PD42-4-1370-TMCL. It is assigned with possible HTSUS value of 8537.10.9170. The product is rohs3 compliant. Moreover, it has connector terminal style. The product has -20°c ~ 50°c operating temperature range. The product provides 200 steps per revolution. The NEMA frame size of 17. It comes in hybrid configuration. It holds up to 2.3 ohms coil resistance. It also exhibits voltage rating of 4.4vdc. The coil is a bipolar type. Features 102gcm² of rotor inertia. In addition, it is reach unaffected. It has a 1.220" (31.00mm) mounting hole space. The typical length of shaft and bearing is 0.945" (24.00mm). A typical value of 99.1 / 700 holding torque. It provides high accuracy of ±5%. Shaft with a 0.197" (5.00mm) diameter. It is shipped in bulk package . The product's diameters include square - 1.654" x 1.654" (42.00mm x 42.00mm). It has a long 73 weeks standard lead time. Additionally, the product's output is 2 a. Has a 1.8° step angle. Its typical moisture sensitivity level is not applicable. The splendid features of the product include integrated controller, flatted shaft. The product pandrive™, is a highly preferred choice for users. Moreover, it corresponds to pd42-4, a base product number of the product. The product is designated with the ear99 code number.
