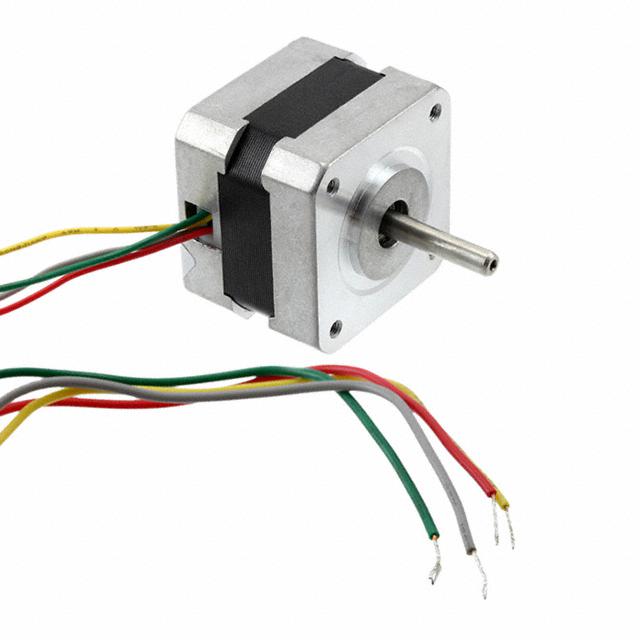

Adafruit Industries LLC 324

324 Adafruit Industries LLC
324
Adafruit Industries LLC

Product Information

HTSUS:
8501.10.6060
RoHS Status:
ROHS3 Compliant
Termination Style:
Wire Leads
Operating Temperature:
0°C ~ 50°C
Approval Agency:
UL
Steps per Revolution:
200
NEMA Frame Size:
17
Type:
Hybrid
Coil Resistance:
35 Ohms
Voltage - Rated:
12VDC
Coil Type:
Bipolar
Rotor Inertia:
38gcm²
Mounting Hole Spacing:
1.220" (30.99mm)
edacadModel:
324 Models
Length - Shaft and Bearing:
0.945" (24.00mm)
edacadModelUrl:
/en/models/5022791
Torque - Holding (oz-in / mNm):
28 / 197
Accuracy:
-
Diameter - Shaft:
0.197" (5.00mm)
Package:
Bulk
Size / Dimension:
Square - 1.654" x 1.654" (42.00mm x 42.00mm)
standardLeadTime:
12 Weeks
Current Rating (Amps):
350 mA
Step Angle:
1.8°
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Flatted Shaft
Weight:
0.441 lb (200.03 g)
Series:
-
ECCN:
EAR99
Checking for live stock

This is manufactured by Adafruit Industries LLC. The manufacturer part number is 324. It is assigned with possible HTSUS value of 8501.10.6060. The product is rohs3 compliant. Moreover, it has wire leads terminal style. The product has 0°c ~ 50°c operating temperature range. It is approved by ul. The product provides 200 steps per revolution. The NEMA frame size of 17. It comes in hybrid configuration. It holds up to 35 ohms coil resistance. It also exhibits voltage rating of 12vdc. The coil is a bipolar type. Features 38gcm² of rotor inertia. It has a 1.220" (30.99mm) mounting hole space. The typical length of shaft and bearing is 0.945" (24.00mm). A typical value of 28 / 197 holding torque. Shaft with a 0.197" (5.00mm) diameter. It is shipped in bulk package . The product's diameters include square - 1.654" x 1.654" (42.00mm x 42.00mm). It has a long 12 weeks standard lead time. Additionally, the product's output is 350 ma. Has a 1.8° step angle. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include flatted shaft. The typical product's weight is 0.441 lb (200.03 g). The product is designated with the ear99 code number.
