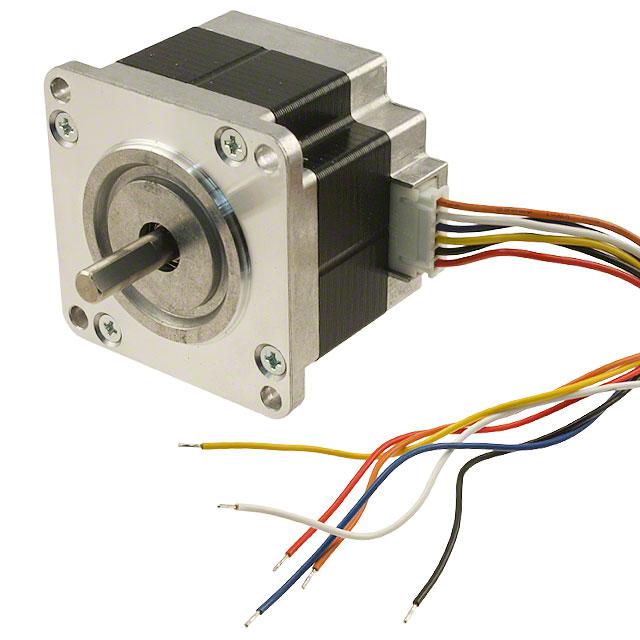

NMB Technologies Corporation 23KM-K267-00V

23KM-K267-00V NMB Technologies Corporation
NMB Technologies Corporation

Product Information

HTSUS:
8501.10.4040
RoHS Status:
RoHS Compliant
Termination Style:
Wire Leads with Connector
Operating Temperature:
-10°C ~ 50°C
Approval Agency:
-
Steps per Revolution:
200
NEMA Frame Size:
23
Type:
Hybrid
Coil Resistance:
5.8 Ohms
Voltage - Rated:
24VDC
Coil Type:
Unipolar
Rotor Inertia:
120gcm²
Mounting Hole Spacing:
1.856" (47.14mm)
Length - Shaft and Bearing:
0.984" (25.00mm)
Torque - Holding (oz-in / mNm):
67.98 / 480
Accuracy:
±5%
Diameter - Shaft:
0.250" (6.35mm)
Package:
Bulk
Size / Dimension:
Square - 2.220" x 2.220" (56.40mm x 56.40mm)
standardLeadTime:
8 Weeks
Current Rating (Amps):
900 mA
Step Angle:
1.8°
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Features:
Flatted Shaft
Weight:
1 lb (453.59 g)
Series:
23KM
Base Product Number:
23KM
ECCN:
EAR99
Checking for live stock

This is manufactured by NMB Technologies Corporation. The manufacturer part number is 23KM-K267-00V. It is assigned with possible HTSUS value of 8501.10.4040. The product is rohs compliant. Moreover, it has wire leads with connector terminal style. The product has -10°c ~ 50°c operating temperature range. The product provides 200 steps per revolution. The NEMA frame size of 23. It comes in hybrid configuration. It holds up to 5.8 ohms coil resistance. It also exhibits voltage rating of 24vdc. The coil is a unipolar type. Features 120gcm² of rotor inertia. It has a 1.856" (47.14mm) mounting hole space. The typical length of shaft and bearing is 0.984" (25.00mm). A typical value of 67.98 / 480 holding torque. It provides high accuracy of ±5%. Shaft with a 0.250" (6.35mm) diameter. It is shipped in bulk package . The product's diameters include square - 2.220" x 2.220" (56.40mm x 56.40mm). It has a long 8 weeks standard lead time. Additionally, the product's output is 900 ma. Has a 1.8° step angle. Its typical moisture sensitivity level is 1 (unlimited). The splendid features of the product include flatted shaft. The typical product's weight is 1 lb (453.59 g). The product 23km, is a highly preferred choice for users. Moreover, it corresponds to 23km, a base product number of the product. The product is designated with the ear99 code number.
