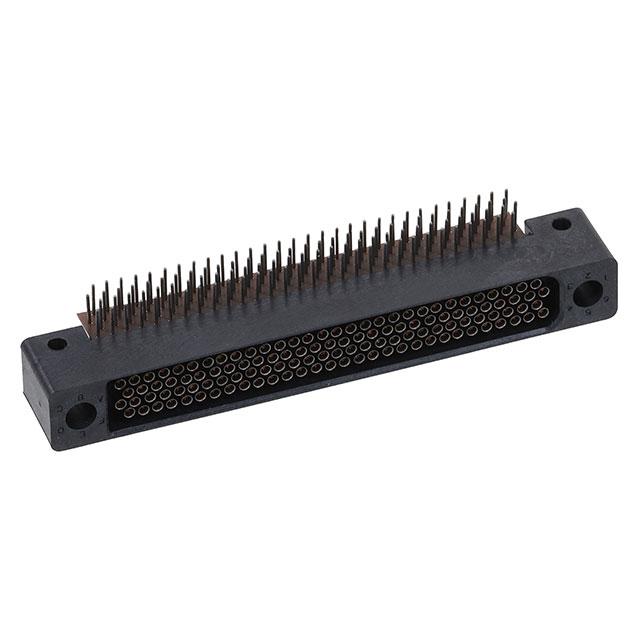

Amphenol Aerospace Operations HDB-D4-120M026X

HDB-D4-120M026X Amphenol Aerospace Operations
Amphenol Aerospace Operations

Product Information

HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-65°C ~ 125°C
Connector Style:
High Density (HDC, HDI, HPC)
Contact Finish Thickness:
100.0µin (2.54µm)
Number of Positions:
120
Connector Usage:
Daughtercard
REACH Status:
REACH Affected
Number of Rows:
12
Material Flammability Rating:
-
Manufacturer:
Amphenol Aerospace Operations
Number of Columns:
10
Contact Layout, Typical:
-
Voltage Rating:
-
Connector Type:
Receptacle, Female Sockets
Contact Finish:
Tin-Lead
Moisture Sensitivity Level (MSL):
Not Applicable
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
2A
Features:
Jackscrew
Mounting Type:
Through Hole, Right Angle
Color:
Black
Series:
HBD
Packaging:
Bag
Pitch:
0.070" (1.78mm)
Number of Positions Loaded:
All
Base Product Number:
HDB-D4
ECCN:
EAR99
Checking for live stock

This is manufactured by Amphenol Aerospace Operations. The manufacturer part number is HDB-D4-120M026X. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -65°c ~ 125°c operating temperature range. It comes in high density (hdc, hdi, hpc) connector style. It has 100.0µin (2.54µm) of contact finishing thickness. The product carries possible position value of 120. While the connector is used as a daughtercard. In addition, it is reach affected. It comes in 12 of rows. The amphenol aerospace operations's product offers user-desired applications. It has a sum of 10 columns. receptacle, female sockets Connector type offer robust functionality. Furthermore, the product is galvanized with excellent tin-lead contact finishing. Its typical moisture sensitivity level is not applicable. The product features solder termination style. It has a long 14 weeks standard lead time. Additionally, the product's output is 2a. The splendid features of the product include jackscrew. The product is available in through hole, right angle configuration. It has a classic black colour. The product hbd, is a highly preferred choice for users. In addition, bag is the available packaging type of the product. Moreover, the product is 0.070" (1.78mm). However, all is the Number of Positions Loaded. Moreover, it corresponds to hdb-d4, a base product number of the product. The product is designated with the ear99 code number.
