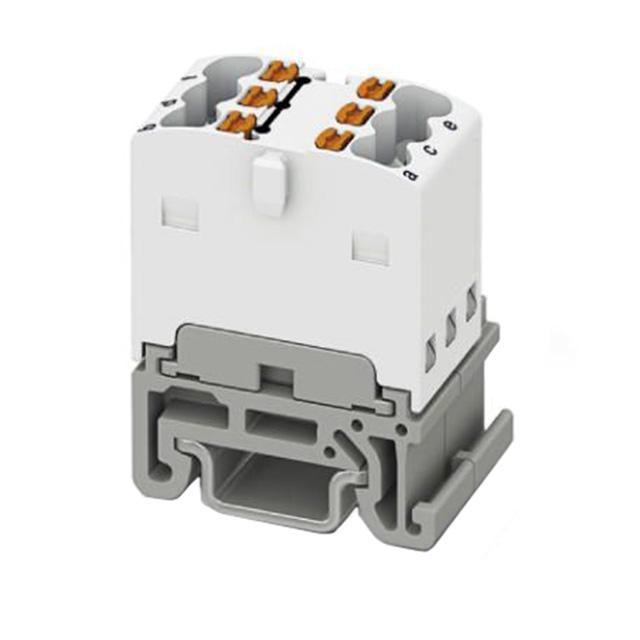

Phoenix Contact 3002936

3002936 Phoenix Contact
3002936
3002936
Phoenix Contact

Product Information

Current Rating:
17.5A
IP Rating:
IP20
Colour:
White
Voltage Rating:
500 V
Housing Material:
Polyamide
Number of Ways:
6
Termination Method:
Push In
Cable CSA:
2.5mm²
Wire Size:
14 AWG
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In, Spring
Material - Insulation:
Polyamide (PA), Nylon
Operating Temperature:
-60°C ~ 130°C
Type:
Middle
Number of Positions:
6
Wire Gauge or Range - mm²:
0.14-2.5mm²
Height (Max):
1.079" (27.40mm)
REACH Status:
REACH Unaffected
Housing Color:
White
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Stripping Length:
8mm ~ 10mm
Moisture Sensitivity Level (MSL):
Not Applicable
Current - IEC:
17.5 A
Number of Levels:
1
Wire Gauge or Range - AWG:
14-26 AWG
Voltage - UL:
300 V
standardLeadTime:
8 Weeks
Terminal - Width:
12.5mm
Voltage - IEC:
500 V
Features:
Block of 3
Mounting Type:
DIN Rail
Series:
CLIPLINE PTFIX
Length:
0.850" (21.60mm)
Packaging:
Bulk
Current - UL:
15 A
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 3002936. The product has a current rating of 17.5a. It is IP rated with ip20. It has a decent white colour. Moreover, the product has a nominal 500 v voltage rating. The product also features robust polyamide housing material. It comprises 6 ways. It allows push in termination method. The cross section area of the cable includes 2.5mm². Concerning wire's size, it is 14 awg. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has push in, spring terminal style. It is designed from highly reliable polyamide (pa), nylon insulating material. The product has -60°c ~ 130°c operating temperature range. It comes in middle configuration. The product carries possible position value of 6. A 0.14-2.5mm² of wire gauge. Additionally, the 1.079" (27.40mm) is the maximum height of the product. In addition, it is reach unaffected. It has an integral white housing colour. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. It has a stripping length of 8mm ~ 10mm. Its typical moisture sensitivity level is not applicable. An IEC current of 17.5 a. The product carries 1 levels. While 14-26 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It has a long 8 weeks standard lead time. The built-in terminal is 12.5mm wide. The nominal voltage of the product is 500 v. The splendid features of the product include block of 3. The product is available in din rail configuration. The product clipline ptfix, is a highly preferred choice for users. Its accurate length is 0.850" (21.60mm). In addition, bulk is the available packaging type of the product. The typical current includes 15 a. The product is designated with the ear99 code number.
